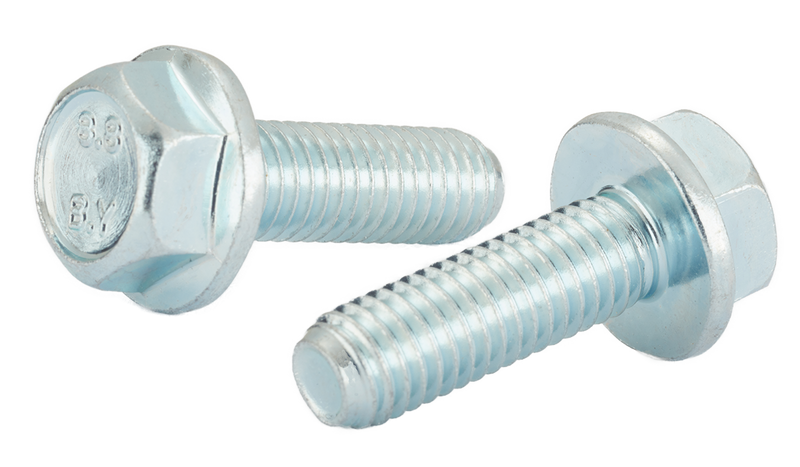

M8-1.25 x 40 mm Hex Flange Bolts / Non-Serrated / Grade 8.8 / Zinc / DIN 6921
- Steel
- Class 8.8
- Zinc
- 1.25mm · Coarse
- DIN 6921
$79.99
$1.60 / pc
Package of 50
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 40 mm Hex Flange Bolts / Non-Serrated / Grade 8.8 / Zinc / DIN 6921
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$79.99
$1.60/pc
.5 x 16 mm Hex Flange Bolts / Non-Serrated / Grade 8.8
Family: MBF8
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M8-1.25 x 40 mm Hex Flange Bolts / Non-Serrated / Grade 8.8 / Zinc / DIN 6921
SKU: M840BF8-50
Technical Specifications
Thread Size
M8-1.25
Thread Series
ISO Metric
Thread Pitch
1.25mm
Length
40mm
Material
Steel
Grade
Class 8.8
Finish
Zinc
Drive
External Hex
Head Style
Hex Flange Head
Standard
DIN 6921
Country of Origin
Import
Point Type
Chamfered
Tensile Strength
800 MPa (116 ksi)
Hardness
C22 - C32
Measurement System
Metric
Width Across Flats
13mm
SKU
M840BF8-50
