Castle Nuts: Slotted Nuts for Positive Cotter Pin Locking
Castle nuts, also known as castellated nuts or slotted nuts, feature a distinctive crown of slots cut into the upper face that enable positive locking with a cotter pin passed through the bolt. This mechanical locking method makes disassembly impossible without intentional cotter pin removal, providing fail-safe retention critical in steering systems, wheel bearings, agricultural equipment, and any safety-critical application where nut loosening would be catastrophic.
Design and Operating Principle

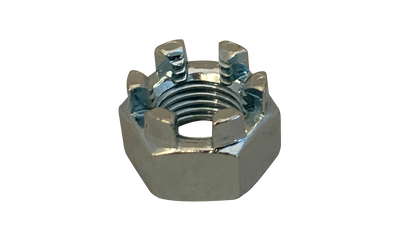

The castle nut design begins with a standard hex nut body that transitions into a reduced-diameter cylindrical crown featuring six radial slots. When installed on a drilled bolt or stud, one slot aligns with the cross-hole in the fastener shank. A cotter pin inserted through this slot and the bolt hole physically prevents nut rotation in either direction.
Unlike friction-based locking methods (nylon inserts, prevailing torque, thread-locking compounds), the cotter pin provides a positive mechanical lock that cannot fail due to vibration, thermal cycling, or time. The nut can only be removed by first extracting the cotter pin—an intentional action impossible to perform accidentally.
Castle nuts are designed for applications requiring both adjustability and absolute security. The nut can be torqued to the proper preload, then backed off slightly if needed to align a slot with the bolt hole. While this may result in slightly less than optimal preload, the benefit of positive locking outweighs minor preload variation in most applications.
Castle Nut vs. Slotted Nut
Though often used interchangeably, castle nuts and slotted nuts differ in design:
Castle Nuts: Feature a reduced-diameter crown with slots cut into the raised section. The crown diameter is smaller than the hex flats, allowing the nut to fit in counterbored locations and providing a clear visual indicator of locking status.
Slotted Hex Nuts: Have slots cut directly into the top of a standard hex profile without a raised crown. The full hex dimension extends to the top. These sit lower and are sometimes preferred where castle nut height is problematic.
Both styles accept cotter pins and provide equivalent locking function. Selection depends on space constraints and application tradition.
Materials and Standards
Grade 2 Castle Nuts: Low carbon steel for general-purpose applications. Adequate strength for non-critical assemblies where the primary concern is preventing loosening rather than supporting high tensile loads.
Grade 5 Castle Nuts: Medium carbon steel, quenched and tempered for increased strength. Matches Grade 5 bolt performance for automotive, agricultural, and industrial applications.
Grade 8 Castle Nuts: High-strength alloy steel for critical applications requiring maximum clamp load. Used with Grade 8 bolts in demanding structural and mechanical assemblies.
Stainless Steel Castle Nuts: 18-8 (304) and 316 grades for corrosion resistance in marine, food processing, and outdoor applications. Lower strength than hardened carbon steel grades.
Fine and Coarse Threads: Available in both UNC (coarse) and UNF (fine) thread series for inch sizes, and standard and fine pitch for metric. Fine threads are common in precision applications and automotive use.
Dimensional standards include ASME B18.2.2 for inch-series castle nuts and DIN 935 / ISO 7035 for metric versions.
Applications
Automotive Steering and Suspension: Tie rod ends, ball joints, and steering linkage connections use castle nuts to ensure these safety-critical components cannot loosen during operation.
Wheel Bearings: Castle nuts with cotter pins retain adjustable tapered roller bearings on axle spindles in trailers, older vehicles, and agricultural implements.
Agricultural Equipment: Implements and tractors use castle nuts extensively for PTO shafts, three-point hitch components, and blade attachments where vibration is severe.
Industrial Machinery: Rotating shafts, conveyor systems, and processing equipment where nut loosening could cause dangerous failures or costly downtime.
Aerospace: Aircraft control linkages, landing gear components, and structural connections where FAA regulations often mandate positive locking methods.
Marine: Propeller shaft nuts, steering systems, and deck hardware where corrosion and vibration combine to challenge friction-based locking.
Recreation and Powersports: ATVs, motorcycles, go-karts, and other recreational vehicles use castle nuts on axles, steering, and suspension for safety and serviceability.
Installation Procedure
Proper castle nut installation follows these steps:
- Ensure the bolt or stud has a cross-drilled hole for the cotter pin. The hole must align with the castle nut slots when installed.
- Thread the castle nut onto the bolt and torque to specification (or proper bearing adjustment for spindle nuts).
- If no slot aligns with the hole, back off the nut to the nearest aligned slot position. Never exceed specified torque to reach alignment.
- Insert the cotter pin through the aligned slot and bolt hole.
- Bend cotter pin ends to prevent withdrawal—typically one leg bent back over the nut crown and one bent along the bolt axis, or both wrapped around the bolt.
Use new cotter pins for each assembly—reusing bent pins risks fatigue failure. Select cotter pin diameter to properly fill the bolt hole without excessive play.
Selection and Inventory
Our castle nut inventory includes all common sizes in Grade 2, Grade 5, Grade 8, and stainless steel. We stock both fine and coarse threads to match your bolt specifications. Matching drilled bolts, studs, and cotter pins are available for complete positive-locking assemblies.
