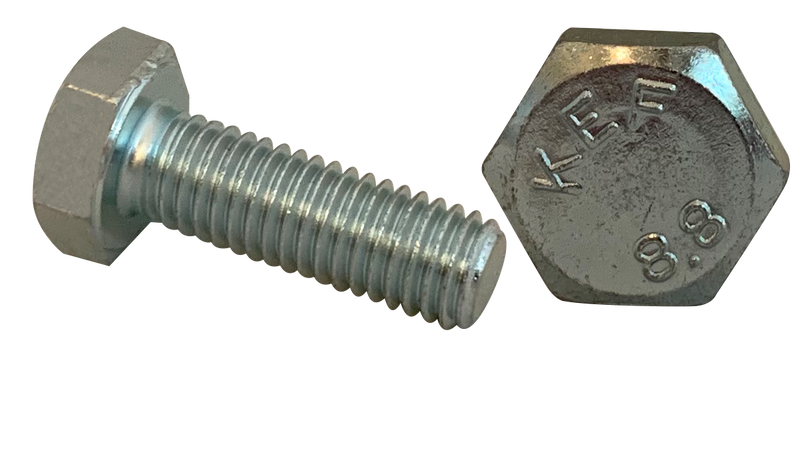

M8-1.25 x 20mm Hex Cap Screws, Full Thread / Class 8.8 Steel / Zinc / DIN 933
- Steel
- Class 8.8
- Zinc
- 1.25mm · Coarse
- DIN 933
$32.99
$0.412 / pc
Package of 80
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 20mm Hex Cap Screws, Full Thread / Class 8.8 Steel / Zinc / DIN 933
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
$32.99
$0.412/pc
.5 x 10 mm Hex Cap Screws / Grade 8.8 / Zinc
Family: D9338
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M8-1.25 x 20mm Hex Cap Screws, Full Thread / Class 8.8 Steel / Zinc / DIN 933
SKU: M820D9338-80
Technical Specifications
Thread Size
M8-1.25
Thread Series
ISO Metric
Thread Pitch
1.25mm
Thread Coverage
Full Thread
Length
20mm
Material
Steel
Grade
Class 8.8
Finish
Zinc
Drive
External Hex
Head Style
Hex Head
Standard
DIN 933
Country of Origin
Import
Tensile Strength
800 MPa (116 ksi)
Hardness
C22 - C32
Measurement System
Metric
Width Across Flats
13mm
SKU
M820D9338-80
