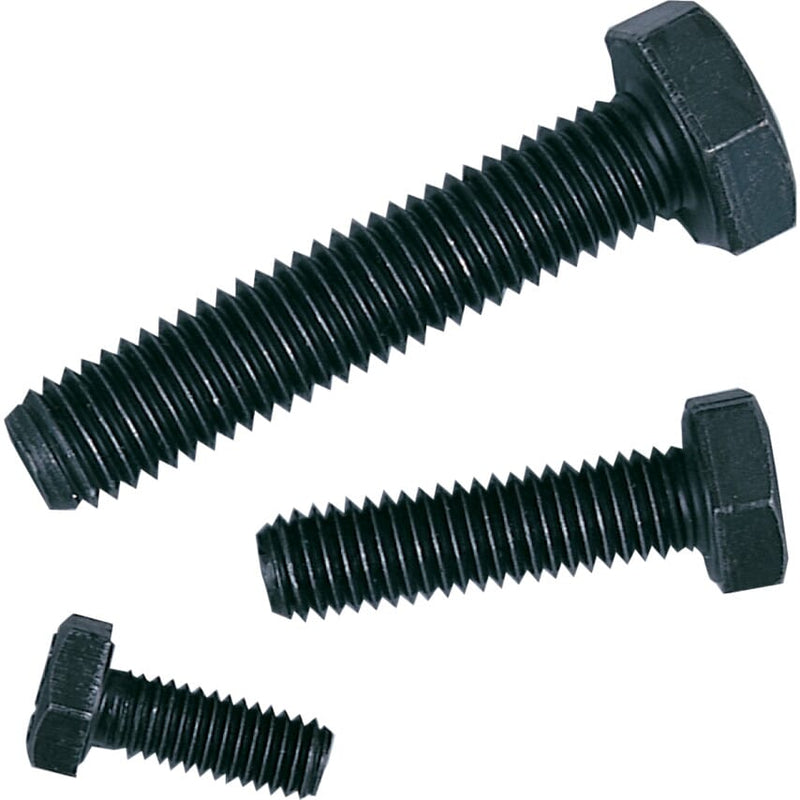

M8-1.25 x 18 mm Hex Cap Screws / Class 10.9
- Steel
- Class 10.9
- Plain
- 1.25mm · Coarse
- DIN 931/933
$335.29
$0.224 / pc
Bulk Box of 1500
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 18 mm Hex Cap Screws / Class 10.9
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
$335.29
$0.224/pc
.00 x 60 MM Hex Bolt Class 10.9 Steel Full Thread (DIN 933)
Family: 462
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M8-1.25 x 18 mm Hex Cap Screws / Class 10.9
SKU: 462619-1500
Technical Specifications
Thread Size
M8-1.25
Thread Series
ISO Metric
Thread Pitch
1.25mm
Thread Coverage
Full Thread
Length
18mm
Material
Steel
Grade
Class 10.9
Finish
Plain
Drive
External Hex
Head Style
Hex Head
Standard
DIN 931/933
Country of Origin
Import
Tensile Strength
145000
Hardness
C32 - C39
Measurement System
Metric
Head Height
5.3 mm
Width Across Flats
13 mm
SKU
462619-1500
