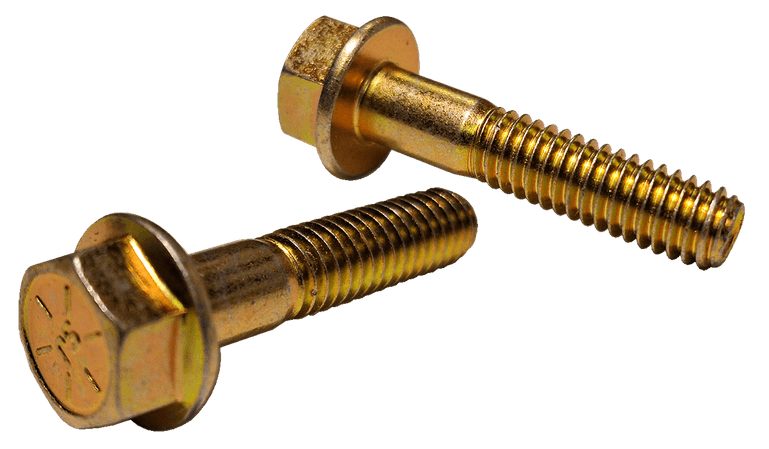

M6-1.00 x 35 mm Hex Flange Bolts / Alloy Steel / Zinc CR+3
- Steel
- Class 10.9
- Zinc
- 1.00mm · Coarse
$453.38
$0.453 / pc
Bulk Box of 1000
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M6-1.00 x 35 mm Hex Flange Bolts / Alloy Steel / Zinc CR+3
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$453.38
$0.453/pc
.00 x 20 MM Flange Bolt Class 10.9 Steel Zinc CR+3 Full Thread
Family: VJ1
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M6-1.00 x 35 mm Hex Flange Bolts / Alloy Steel / Zinc CR+3
SKU: VJ1035-1000
Technical Specifications
Thread Size
M6-1.00
Thread Series
ISO Metric
Thread Pitch
1.00mm
Thread Coverage
Partial Thread
Length
35mm
Material
Steel
Grade
Class 10.9
Finish
Zinc
Drive
External Hex
Head Style
Hex Flange Head
Country of Origin
Import
Point Type
Chamfered
Tensile Strength
145000
Hardness
C32 - C39
Measurement System
Metric
SKU
VJ1035-1000
