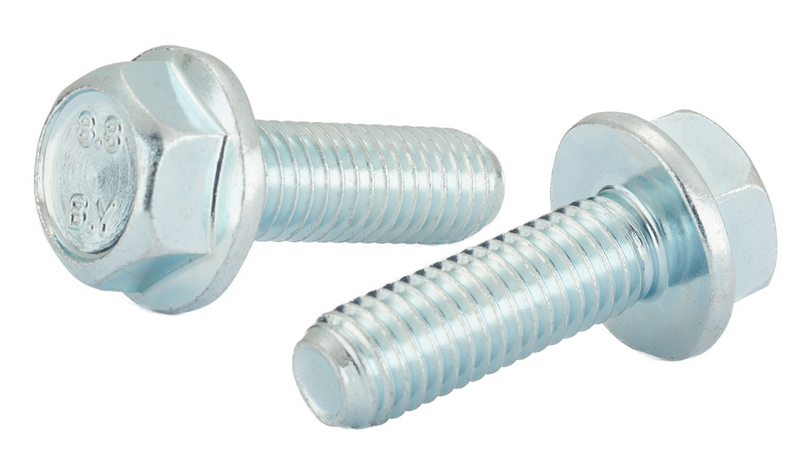

M6-1.0 x 60 mm Hex Flange Bolts / Non-Serrated / Grade 8.8 / Zinc / DIN6921
$220.50
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M6-1.0 x 60 mm Hex Flange Bolts / Non-Serrated / Grade 8.8 / Zinc / DIN6921
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 8.8 |
| Size | M6-1.0 |
| Length | 60mm |
| Head Style | Hex Flange Head |
| Drive | External Hex |
| Thread Pitch | 1.0mm |
| Thread Class | Coarse |
| Hardness | C22-C32 |
| Tensile Strength | 800 MPa (116 ksi) |
| Standard | DIN 6921 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
.5 x 16 mm Hex Flange Bolts / Non-Serrated / Grade 8.8
Family: MBF8
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M6-1.0
Thread Type
Metric Coarse
Material
Steel
Grade
Class 8.8
Head Style
Hex Flange Head
Thread Pitch
1.0mm
Tensile Strength
800 MPa (116 ksi)
Hardness
C22-C32
SKU
M660BF8-700
