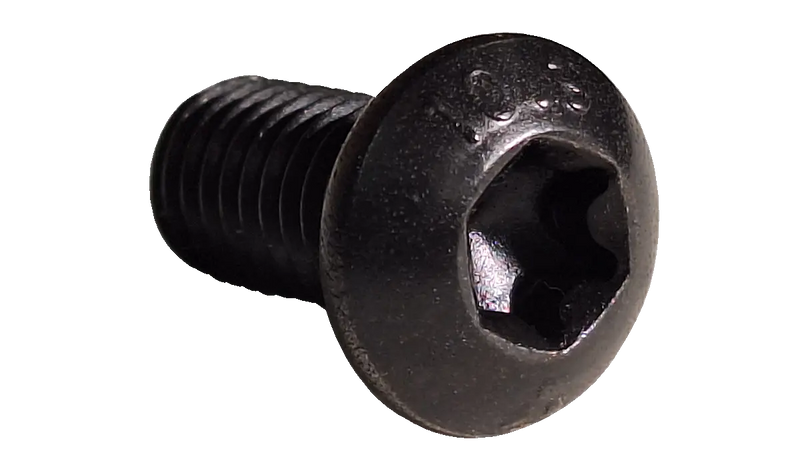

M6-1.0 x 25mm 6-Lobe Button Head Machine Screws / Class 10.9 Steel / Black Oxide
- Steel
- Class 10.9
- Black Oxide
- 1.0mm · Coarse
- DIN 7985 / ISO 7045
$319.86
$1.28 / pc
Package of 250
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M6-1.0 x 25mm 6-Lobe Button Head Machine Screws / Class 10.9 Steel / Black Oxide
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$319.86
$1.28/pc
.5 x 10 mm Machine Screws / Six-Lobe (Torx®) / Button Head
Family: MICTB10
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M6-1.0 x 25mm 6-Lobe Button Head Machine Screws / Class 10.9 Steel / Black Oxide
SKU: MI625CTB10-250
Technical Specifications
Thread Size
M6-1.0
Thread Series
ISO Metric
Thread Pitch
1.0mm
Length
25mm
Material
Steel
Grade
Class 10.9
Finish
Black Oxide
Drive
6-Lobe
Head Style
Button Head
Standard
DIN 7985 / ISO 7045
Country of Origin
Import
Point Type
Machine (Blunt)
Tensile Strength
1040 MPa (151 ksi)
Hardness
C32 - C39
Head Diameter
10.07mm–10.50mm
Measurement System
Metric
Head Height
3.0mm–3.3mm
SKU
MI625CTB10-250
