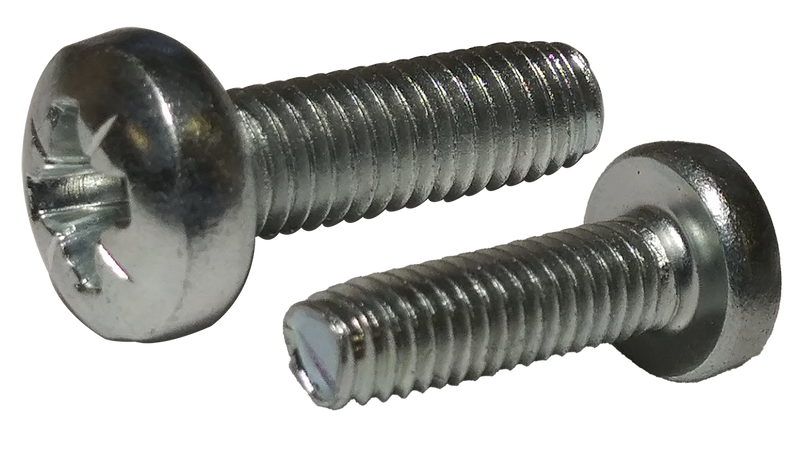

M6-1.0 x 20 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
- Steel
- Zinc
- 1.0mm · Coarse
- DIN 7500C
$23.57
$0.589 / pc
Package of 40
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M6-1.0 x 20 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
RoHS Compliant
$23.57
$0.589/pc
-0.45 x 10 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head
Family: D7500C
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M6-1.0 x 20 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
SKU: M620D7500C-40
Technical Specifications
Thread Size
M6-1.0
Thread Series
ISO Metric
Thread Pitch
1.0mm
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
20mm
Material
Steel
Finish
Zinc
Drive
Pozi
Head Style
Pan Head
Standard
DIN 7500C
Country of Origin
Import
Head Diameter (mm)
11.57–12.0
Measurement System
Metric
Head Height (mm)
4.45–4.75
SKU
M620D7500C-40
