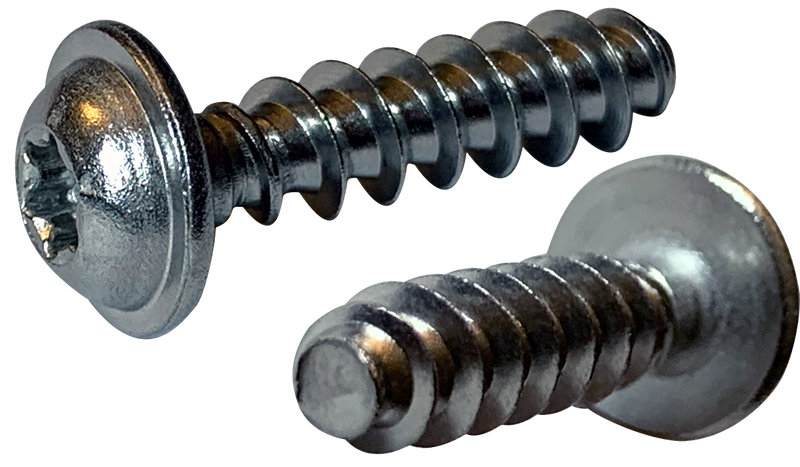

M5-2.24 x 14 mm Type PT Style Thread Forming Screws / Torx/Six-Lobe / Round Washer Head / A2 Stainless Steel
$231.20
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M5-2.24 x 14 mm Type PT Style Thread Forming Screws / Torx/Six-Lobe / Round Washer Head / A2 Stainless Steel
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | M5-2.24 |
| Length | 14mm |
| Head Style | Round Washer Head |
| Drive | 6-Lobe |
| Thread Pitch | 2.24mm |
| Thread Class | Coarse |
| Head Diameter | 9.7mm - 10mm |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
-0.67 x 5 mm Type PT Style Thread Forming Screws / Six-Lobe (Torx®) / Round Washer Head
Family: M-PTTRWA2
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M5-2.24
Thread Type
Metric Coarse
Material
Stainless Steel
Grade
18-8
Head Style
Round Washer Head
Thread Pitch
2.24mm
Head Diameter
9.7mm - 10mm
SKU
M514PTTRWA2-1500
