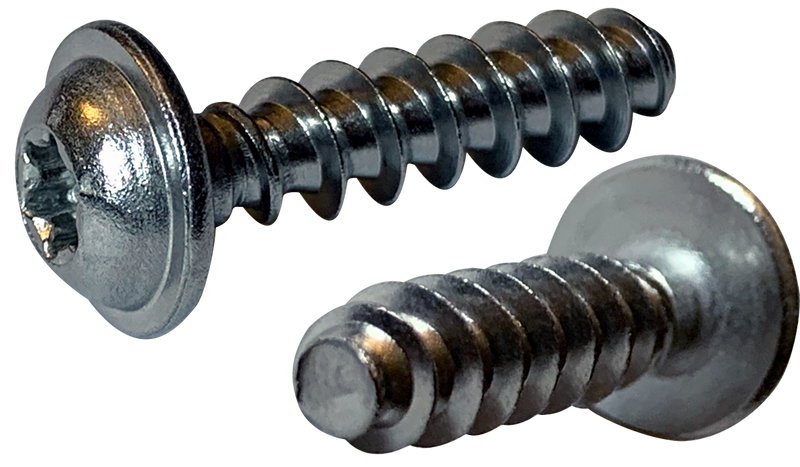

M5-2.24 x 10 mm Type PT Style Thread Forming Screws / 6-Lobe / Round Washer Head / A2 Stainless Steel / Passivated
- Stainless Steel
- Passivated
- 2.24mm · Coarse
$79.70
$0.531 / pc
Package of 150
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M5-2.24 x 10 mm Type PT Style Thread Forming Screws / 6-Lobe / Round Washer Head / A2 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$79.70
$0.531/pc
-0.67 x 5 mm Type PT Style Thread Forming Screws / Six-Lobe (Torx®) / Round Washer Head
Family: M-PTTRWA2
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M5-2.24 x 10 mm Type PT Style Thread Forming Screws / 6-Lobe / Round Washer Head / A2 Stainless Steel / Passivated
SKU: M510PTTRWA2-150
Technical Specifications
Thread Size
M5-2.24
Thread Series
ISO Metric
Thread Pitch
2.24mm
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Type PT
Length
10mm
Material
Stainless Steel
Finish
Passivated
Drive
6-Lobe
Head Style
Round Washer Head
Country of Origin
Import
Head Diameter
9.7mm–10mm
Measurement System
Metric
Head Height
3.175mm–3.3mm
SKU
M510PTTRWA2-150
