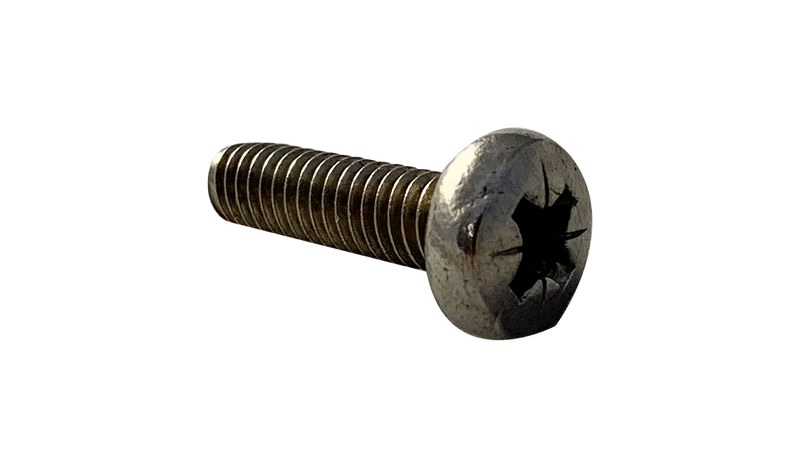

M5-0.8 x 8 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / A2 Stainless Steel / Passivated / DIN 7500C
- Stainless Steel
- Passivated
- 0.8mm · Coarse
- DIN 7500C
$63.04
$0.420 / pc
Package of 150
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M5-0.8 x 8 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / A2 Stainless Steel / Passivated / DIN 7500C
M5-0.8 x 8mm thread-forming screw in 18-8 Stainless Steel, passivated finish. For displacing material to form a thread with no chips and no cleanup.
- PAN HEAD — a rounded head with a wide bearing face — the general-purpose choice where flush seating is not required
- POZIDRIV — a cross recess with extra ribs that grips harder than Phillips and resists cam-out; use a Pozi bit, not a Phillips
- PASSIVATED — an acid treatment that strips free iron from the stainless surface so it cannot bleed rust down the workpiece
- 18-8 STAINLESS — the 300-series austenitic workhorse — non-magnetic, excellent general corrosion resistance, and it will not rust-stain the surface around it
- STAINLESS STEEL — corrosion resistant through the whole section, not just the surface — a scratch does not start a rust bloom
Stainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$63.04
$0.420/pc
-0.45 x 10 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M5-0.8 x 8 mm Trilobe Thread Forming Screws for Metal / Pozi / Pan Head / A2 Stainless Steel / Passivated / DIN 7500C
SKU: M58RZP188-150
Technical Specifications
Thread Size
M5-0.8
Thread Series
ISO Metric
Thread Pitch
0.8mm
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
8mm
Material
Stainless Steel
Finish
Passivated
Drive
Pozi
Head Style
Pan Head
Standard
DIN 7500C
Country of Origin
Import
Measurement System
Metric
SKU
M58RZP188-150
