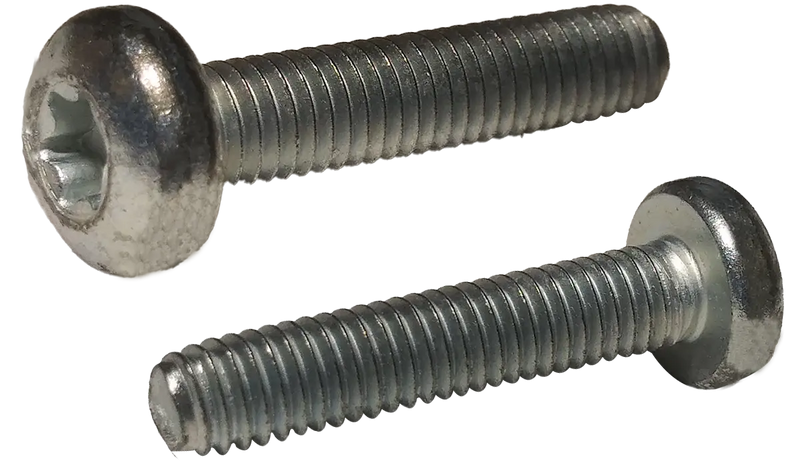

M3-0.5 x 25 mm Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
- Steel
- Zinc
- 0.5mm · Coarse
- DIN 7500CE, DIN 7500C
$23.46
$0.235 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M3-0.5 x 25 mm Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
RoHS Compliant
$23.46
$0.235/pc
-0.45 x 10 mm Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Pan Head
Family: D7500CE
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M3-0.5 x 25 mm Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / DIN 7500C
SKU: M325D7500T-100
Technical Specifications
Thread Size
M3-0.5
Thread Series
ISO Metric
Thread Pitch
0.5mm
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
25mm
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Pan Head
Standard
DIN 7500CE, DIN 7500C
Country of Origin
Import
Head Diameter (mm)
5.3–5.6
Measurement System
Metric
Head Height (mm)
2.26–2.40
SKU
M325D7500T-100
