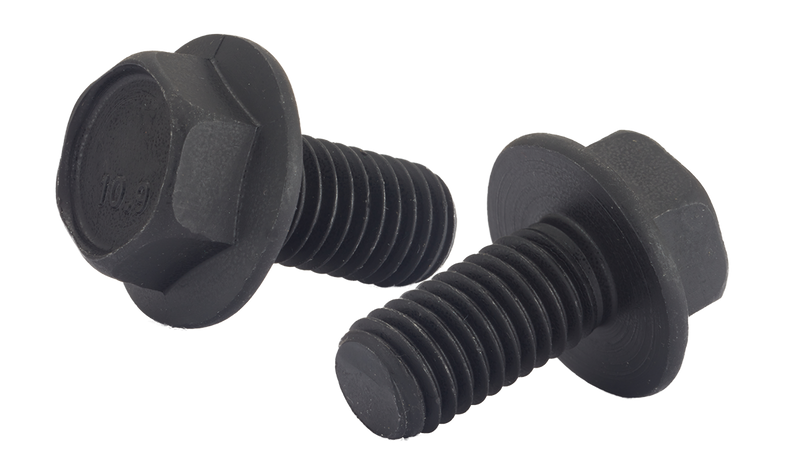

M12-1.75 x 100 mm Hex Flange Bolts / Non-Serrated / Grade 10.9 / Black Phos / Phosphate / DIN 6921
- Steel
- Class 10.9
- Phosphate
- 1.75mm · Coarse
- DIN 6921
$51.20
$5.12 / pc
Package of 10
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M12-1.75 x 100 mm Hex Flange Bolts / Non-Serrated / Grade 10.9 / Black Phos / Phosphate / DIN 6921
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$51.20
$5.12/pc
.5 x 20 mm Hex Flange Bolts / Non-Serrated / Grade 10.9
Family: MBF10BP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
M12-1.75 x 100 mm Hex Flange Bolts / Non-Serrated / Grade 10.9 / Black Phos / Phosphate / DIN 6921
SKU: M12100BF10BP-10
Technical Specifications
Thread Size
M12-1.75
Thread Series
ISO Metric
Thread Pitch
1.75mm
Length
100mm
Material
Steel
Grade
Class 10.9
Finish
Phosphate
Drive
External Hex
Head Style
Hex Flange Head
Standard
DIN 6921
Point Type
Chamfered
Tensile Strength
1040 MPa (151 ksi)
Hardness
C32 - C39
Measurement System
Metric
Width Across Flats
19mm
SKU
M12100BF10BP-10
