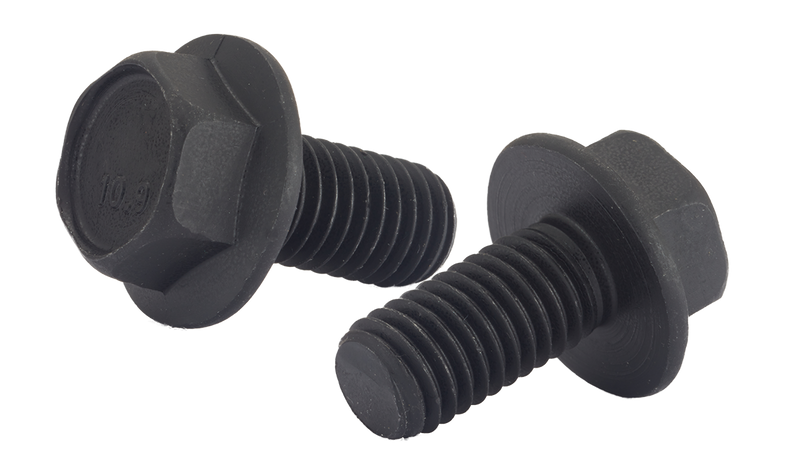

M10-1.5 x 50 mm Hex Flange Bolts / Non-Serrated / Grade 10.9 / Black Phos / DIN6921
$221.81
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M10-1.5 x 50 mm Hex Flange Bolts / Non-Serrated / Grade 10.9 / Black Phos / DIN6921
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Phosphate |
| Grade | Class 10.9 |
| Size | M10-1.5 |
| Length | 50mm |
| Head Style | Hex Flange Head |
| Drive | External Hex |
| Thread Pitch | 1.5mm |
| Thread Class | Coarse |
| Hardness | C32-C39 |
| Tensile Strength | 1040 MPa (151 ksi) |
| Standard | DIN 6921 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
.5 x 20 mm Hex Flange Bolts / Non-Serrated / Grade 10.9
Family: MBF10BP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.5
Thread Type
Metric Coarse
Material
Alloy Steel
Grade
Class 10.9
Head Style
Hex Flange Head
Thread Pitch
1.5mm
Tensile Strength
1040 MPa (151 ksi)
Hardness
C32-C39
SKU
M1050BF10BP-300
