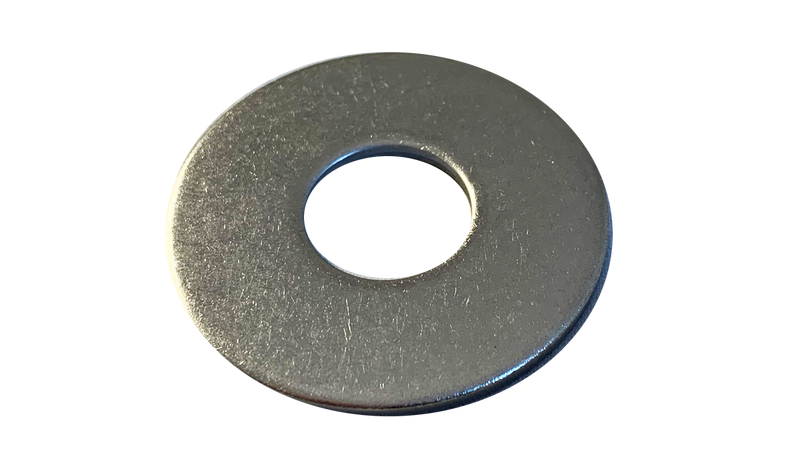

#8x5/16"x0.016 Flat Washer (AN960L) / 0.312" OD / 0.016" Thick / A2 Stainless Steel / Passivated / ISO 3506-1 A2-70; ASME B18.22.1
- Stainless Steel
- 18-8
- Passivated
- ASME B18.22.1
$33.41
$0.067 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8x5/16"x0.016 Flat Washer (AN960L) / 0.312" OD / 0.016" Thick / A2 Stainless Steel / Passivated / ISO 3506-1 A2-70; ASME B18.22.1
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$33.41
$0.067/pc
Flat Washer (An960L) / A2 Stainless Steel / Passivated
Family: 397
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#8x5/16"x0.016 Flat Washer (AN960L) / 0.312" OD / 0.016" Thick / A2 Stainless Steel / Passivated / ISO 3506-1 A2-70; ASME B18.22.1
SKU: 397260-500
Technical Specifications
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Thread Direction
Unthreaded
Standard
ASME B18.22.1
Washer Type
SAE
Inside Diameter
3/16"
Outer Diameter
7/16"
Thickness
0.040"
Tensile Strength
70000
Hardness
B70 - C32
Measurement System
Inch
SKU
397260-500
