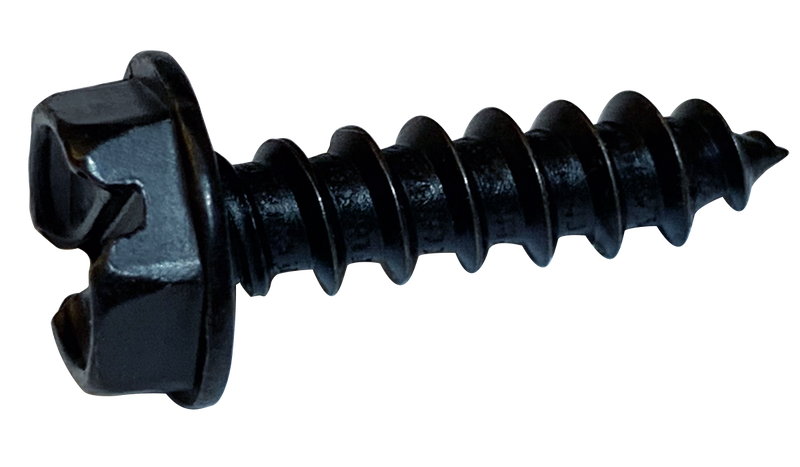

#8 x 5/16" Type AB Slotted Hex Washer Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Black Oxide
- Steel
- Black Oxide
- 8-18 · Coarse
- ASME B18.6.3
$511.90
$0.051 / pc
Bulk Box of 10000
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8 x 5/16" Type AB Slotted Hex Washer Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Black Oxide
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$511.90
$0.051/pc
Type AB Self-Tapping Screws / Slotted / Hex Washer Head
Family: ABSWB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8
Length
5/16"
Thread Type
Coarse
Material
Steel
Finish
Black Oxide
Drive
Slotted
Head Style
Hex Washer Head
Standard
ASME B18.6.3
Country of Origin
Import
Thread Pitch
8-18
Point Type
Gimlet
Head Diameter
1/4
Measurement System
Inch
SKU
0805ABSWB-10000
