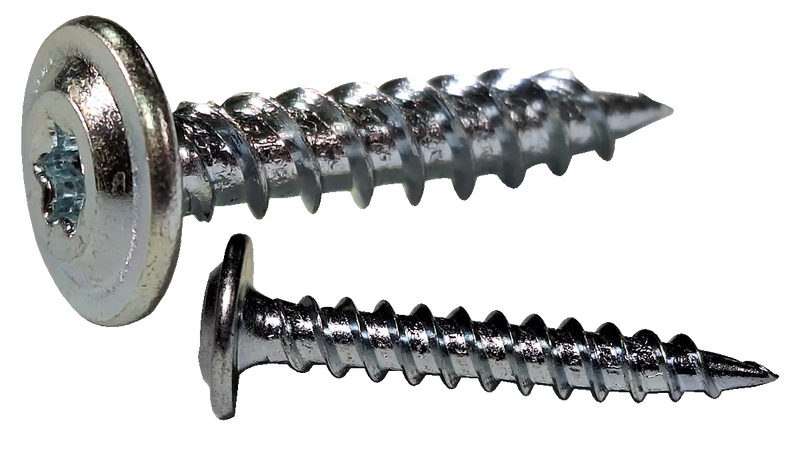

#8 x 1 5/8" Torx Modified Truss Head Self-Piercing Screws, Full Thread / Low Carbon Steel / Zinc
- Steel
- Zinc
- 8-15 · Coarse
- ASME B18.6.3
$128.88
$0.258 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8 x 1 5/8" Torx Modified Truss Head Self-Piercing Screws, Full Thread / Low Carbon Steel / Zinc
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
$128.88
$0.258/pc
Self-Piercing Screws / Six-Lobe (Torx®) / Modified Truss Head
Family: PTM
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#8 x 1 5/8" Torx Modified Truss Head Self-Piercing Screws, Full Thread / Low Carbon Steel / Zinc
SKU: 0826PTM-500
Technical Specifications
Thread Size
#8
Thread Series
UNC
Thread Pitch
8-15
Thread Coverage
Full Thread
Length
1 5/8"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Modified Truss Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Self Piercing
Head Diameter (in)
0.426–0.446
Measurement System
Inch
Head Height (in)
0.082–0.098
SKU
0826PTM-500
