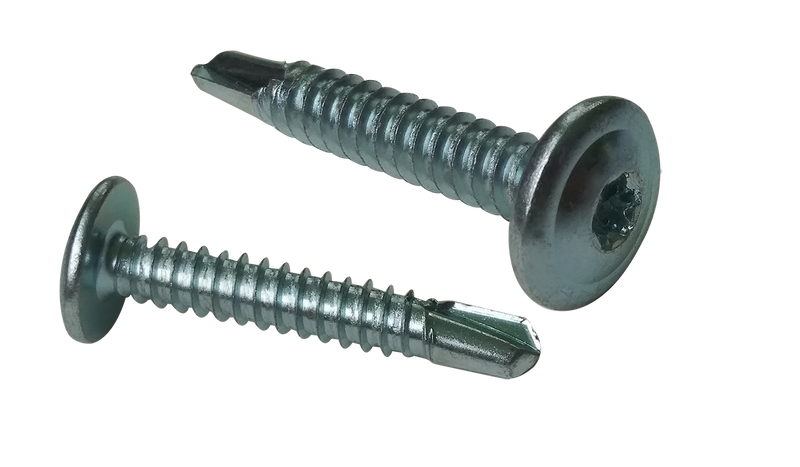

#8 x 1 5/8" Drill Point #2 Torx Modified Truss Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
- Steel
- Zinc
- 8-18 · Coarse
- ASME B18.6.3
$106.29
$0.354 / pc
Package of 300
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8 x 1 5/8" Drill Point #2 Torx Modified Truss Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
$106.29
$0.354/pc
Self-Drilling Screws / Six-Lobe (Torx®) / Modified Truss Head
Family: KTM
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#8 x 1 5/8" Drill Point #2 Torx Modified Truss Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
SKU: 0826KTM-300
Technical Specifications
Thread Size
#8
Thread Series
UNC
Thread Pitch
8-18
Thread Coverage
Full Thread
Thread Action
Self-Drilling
Length
1 5/8"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Modified Truss Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Drill Point #2
Head Diameter (in)
0.426–0.446
Measurement System
Inch
Head Height (in)
0.082–0.098
SKU
0826KTM-300
