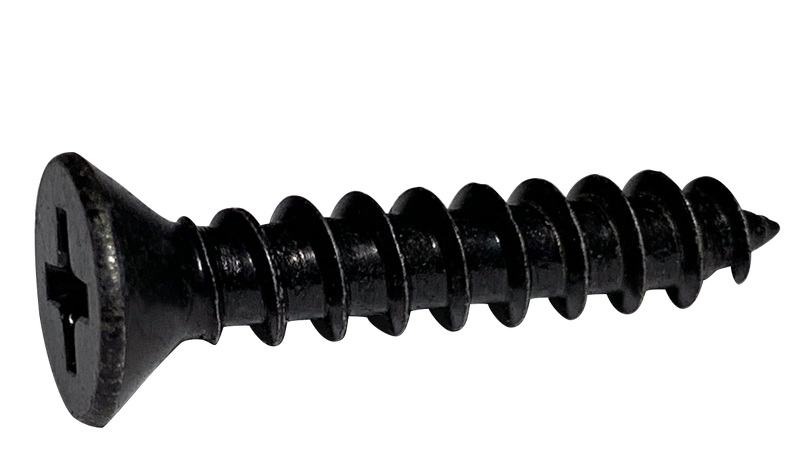

#8 x 1 3/4" Type AB Phillips Flat Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Zinc Black
- Steel
- Zinc Black
- 8-18 · Coarse
- ASME B18.6.3
$103.57
$0.345 / pc
Package of 300
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8 x 1 3/4" Type AB Phillips Flat Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Zinc Black
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
$103.57
$0.345/pc
Type AB Self-Tapping Screws / Phillips / Flat Head
Family: ABPFBZ
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#8 x 1 3/4" Type AB Phillips Flat Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Zinc Black
SKU: 0828ABPFBZ-300
Technical Specifications
Thread Size
#8
Thread Series
UNC
Thread Pitch
8-18
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Type AB
Length
1 3/4"
Material
Steel
Finish
Zinc Black
Drive
Phillips
Head Style
Flat Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Gimlet
Head Diameter (in)
0.285–0.312
Measurement System
Inch
Head Height (in)
0.084–0.100
SKU
0828ABPFBZ-300
