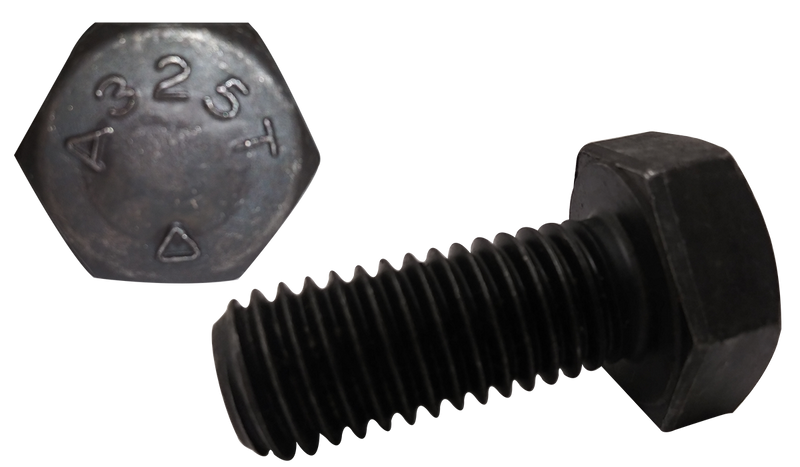

7/8"-9 x 2 3/4" Structural Bolts / A325 / Plain
$223.80
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
7/8"-9 x 2 3/4" Structural Bolts / A325 / Plain
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | A325 |
| Size | 7/8"-9 |
| Length | 2 3/4" |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 9 TPI |
| Thread Class | Coarse |
| Hardness | C24-C35 |
| Tensile Strength | 120 ksi (827 MPa) |
| Standard | ASME B18.2.1 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
| Head Height | 37/64" |
| Width Across Flats | 1 5/16" |
RoHS Compliant
Structural Bolts / A325 / Plain
Family: A325
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
7/8"-9
Thread Type
Coarse (UNC)
Material
Steel
Grade
A325
Head Style
Hex Head
Thread Pitch
9 TPI
Tensile Strength
120 ksi (827 MPa)
Hardness
C24-C35
SKU
8744A325-1-50
