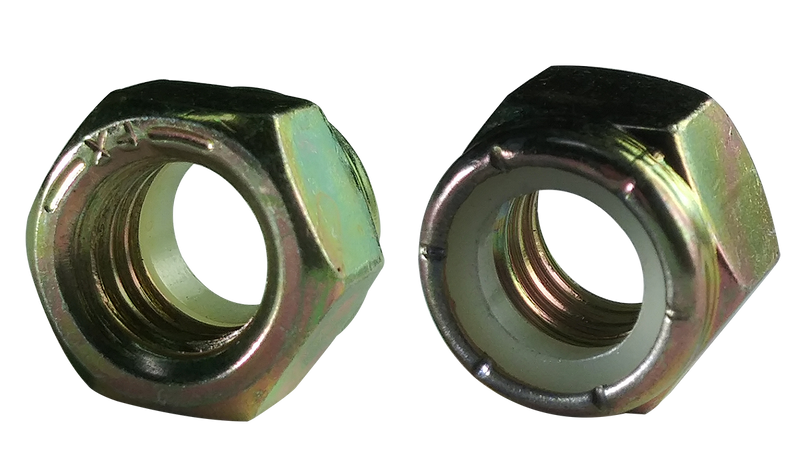

7/8"-14 NE Nylon Insert Locknuts / Light Hex Standard / Grade 8 / Zinc Yellow
- Steel
- Grade 8
- Zinc Yellow
- 14 TPI · Fine
- ASME B18.2.2
$22.91
$7.64 / pc
Package of 3
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
7/8"-14 NE Nylon Insert Locknuts / Light Hex Standard / Grade 8 / Zinc Yellow
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
How many times can I reuse a nylon insert lock nut?
Nylon insert lock nuts can typically be reused 5-7 times in non-critical applications before the nylon insert loses its elasticity. For safety-critical applications (automotive suspension, structural connections), use new lock nuts each time. Temperature range is -65°F to +250°F (-54°C to +121°C).
$22.91
$7.64/pc
NE Nylon Insert Locknuts / Light Hex Standard / Grade 8
Family: NS8
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
7/8"-14 NE Nylon Insert Locknuts / Light Hex Standard / Grade 8 / Zinc Yellow
SKU: 88NS8-3
Technical Specifications
Thread Size
7/8"-14
Thread Series
UNF
Thread Pitch
14 TPI
Material
Steel
Grade
Grade 8
Finish
Zinc Yellow
Standard
ASME B18.2.2
Country of Origin
Import
Thickness (in)
0.75
Nut Type
Nylon Insert Lock
Measurement System
Inch
Width Across Flats
1 5/16"
SKU
88NS8-3
