Hex Cap Screws / Steel / Grade 8 / Plain
SKU: 452258-50 In Stock

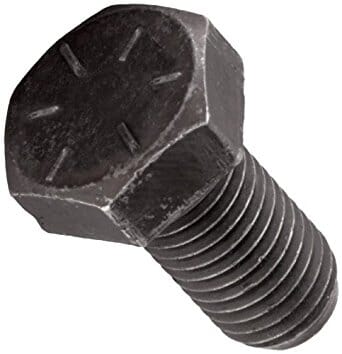

7/16"-20 x 1 1/2" Hex Cap Screws, Full Thread / Alloy Steel / Grade 8 / Plain / Made in USA

  • Steel
  • Grade 8
  • Plain
  • 20 TPI
  • ASME B18.2.1
$123.46 $2.47 / pc Package of 50
Package Quantity

Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →

Net 30 terms for approved accounts. Apply for wholesale →

Product Description

7/16"-20 x 1 1/2" Hex Cap Screws, Full Thread / Alloy Steel / Grade 8 / Plain / Made in USA

7/16"-20 x 1 1/2" fastener in Medium Carbon Alloy Steel, Grade 8.

  • ALLOY STEEL — quenched and tempered for high tensile strength; nearly always supplied with a protective finish since the base metal rusts readily
  • SAE GRADE 8 — medium carbon alloy, quenched and tempered — 150,000 PSI tensile; six radial lines on the head, for suspension, towing and high-clamp joints
  • PLAIN — uncoated — oil it, paint it or keep it dry
  • HEX HEAD — driven with a socket or wrench, so you can put real torque through it without a bit camming out
  • FULL THREAD — threaded to the head, so it grips over the whole length and suits thin or variable stack-ups
🇺🇸 Made in USA

Frequently Asked Questions

What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.

Hex Cap Screw 8 Steel Full Thread

Select size and quantity, then add to cart

Loading filters...
Loading family products...
7/16"-20 x 1 1/2" Hex Cap Screws, Full Thread / Alloy Steel / Grade 8 / Plain / Made in USA
SKU: 452258-50

Technical Specifications

Thread Size
7/16"-20
Thread Pitch
20 TPI
Thread Coverage
Full Thread
Length
1 1/2"
Material
Steel
Grade
Grade 8
Finish
Plain
Drive
External Hex
Head Style
Hex Head
Standard
ASME B18.2.1
Country of Origin
USA
Tensile Strength
150000
Hardness
C33 - C39
Measurement System
Inch
Width Across Flats
5/8"
SKU
452258-50
