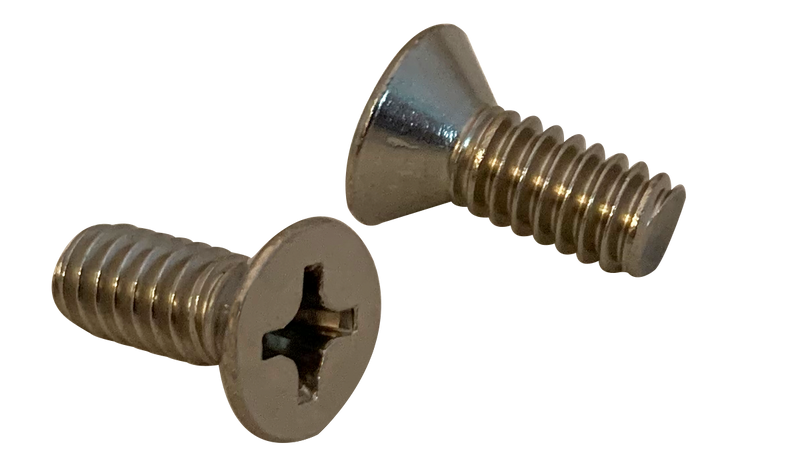

#6-18 x 1" Type A Phillips Flat Head Self-Tapping Screws, Full Thread / 316 Stainless Steel / Passivated
- Stainless Steel
- 316
- Passivated
- 18 TPI · Coarse
- ASME B18.6.3
$231.51
$0.232 / pc
Package of 1000
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#6-18 x 1" Type A Phillips Flat Head Self-Tapping Screws, Full Thread / 316 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$231.51
$0.232/pc
Phillips Flat Head Machine Screw, Full Thread / 316 Stainless Steel / Passivated
Family: W66
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#6-18 x 1" Type A Phillips Flat Head Self-Tapping Screws, Full Thread / 316 Stainless Steel / Passivated
SKU: W66080-1000
Technical Specifications
Thread Size
#6-18
Thread Series
Sheet Metal
Thread Pitch
18 TPI
Thread Coverage
Full Thread
Length
1"
Material
Stainless Steel
Grade
316
Finish
Passivated
Drive
Phillips
Head Style
Flat Head
Standard
ASME B18.6.3
Point Type
Machine (Blunt)
Tensile Strength
70000
Hardness
B70 - C32
Measurement System
Inch
SKU
W66080-1000
