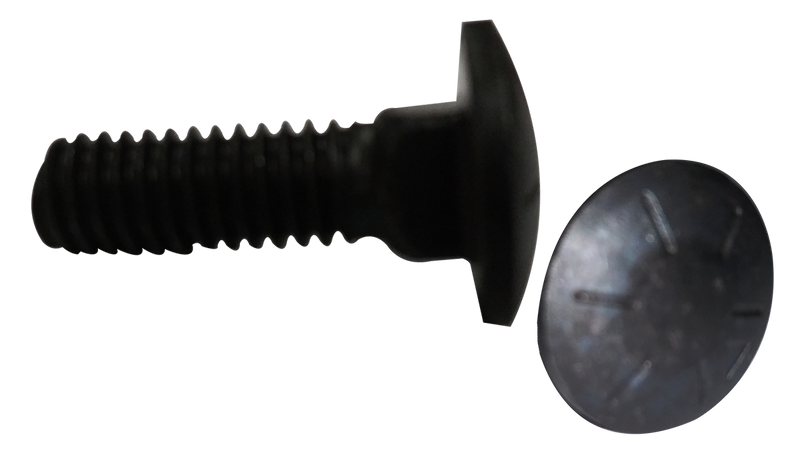

5/8"-11 x 5" Carriage Bolts / Full Thread / Grade 8 / Plain
$246.81
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
5/8"-11 x 5" Carriage Bolts / Full Thread / Grade 8 / Plain
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Plain |
| Grade | Grade 8 |
| Size | 5/8"-11 |
| Length | 5" |
| Head Style | Round Head |
| Drive | No Drive |
| Thread Pitch | 11 TPI |
| Thread Class | Coarse |
| Hardness | C33-C39 |
| Tensile Strength | 150 ksi (1034 MPa) |
| Standard | ASME B18.5 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Why does a carriage bolt have a square neck?
The square neck beneath the round head wedges into the wood as the nut is tightened, preventing the bolt from rotating. This allows tightening from one side only — perfect for deck and fence construction where you can not access the back side of the bolt.
Carriage Bolts / Full Thread / Grade 8
Family: C8FTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
5/8"-11
Thread Type
Coarse (UNC)
Material
Alloy Steel
Grade
Grade 8
Head Style
Round Head
Thread Pitch
11 TPI
Tensile Strength
150 ksi (1034 MPa)
Hardness
C33-C39
SKU
6280C8P-70
