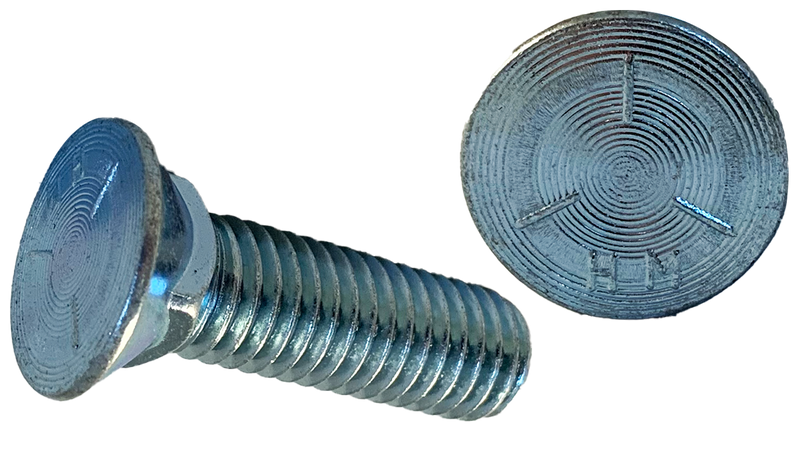

5/8"-11 x 3" Plow Bolts, No. 3 Head / Grade 5 / Zinc
$344.24
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
5/8"-11 x 3" Plow Bolts, No. 3 Head / Grade 5 / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Grade 5 |
| Size | 5/8"-11 |
| Length | 3" |
| Head Style | Flat Head |
| Thread Pitch | 11 TPI |
| Thread Class | Coarse |
| Hardness | C25-C34 |
| Tensile Strength | 120 ksi (827 MPa) |
| Standard | ASME B18.5 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Plow Bolts / Grade 5 / Zinc
Family: BP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
5/8"-11
Thread Type
Coarse (UNC)
Material
Steel
Grade
Grade 5
Head Style
Flat Head
Thread Pitch
11 TPI
Tensile Strength
120 ksi (827 MPa)
Hardness
C25-C34
SKU
6248BP-150
