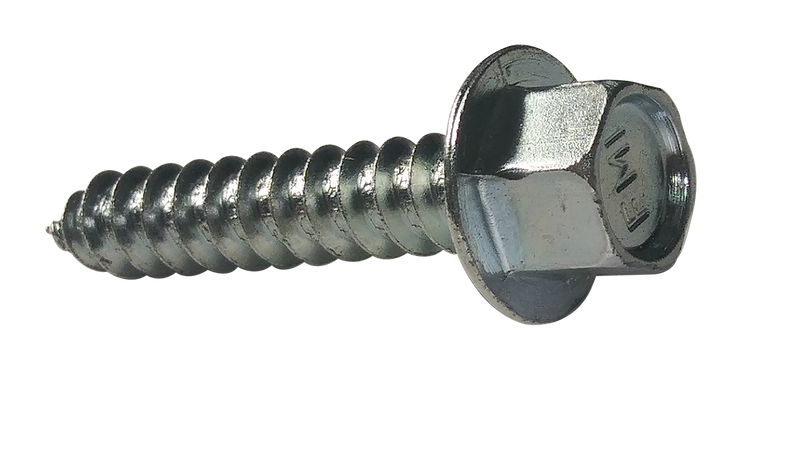

5/16" x 2" Type A Hex Washer Head Self-Tapping Screws / Low Carbon Steel / Zinc
- Steel
- Zinc
- 9 · Coarse
- ASME B18.6.3
$66.87
$1.34 / pc
Package of 50
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16" x 2" Type A Hex Washer Head Self-Tapping Screws / Low Carbon Steel / Zinc
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
$66.87
$1.34/pc
Type A Self-Tapping Screws / Unslotted
Family: AWH07
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
5/16" x 2" Type A Hex Washer Head Self-Tapping Screws / Low Carbon Steel / Zinc
SKU: 313207AWH-50
Technical Specifications
Thread Size
5/16"
Thread Series
UNC
Thread Pitch
9
Thread Action
Thread Forming
Tapping Type
Type A
Length
2"
Material
Steel
Finish
Zinc
Drive
External Hex
Head Style
Hex Washer Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Gimlet
Measurement System
Inch
Width Across Flats
1/2"
SKU
313207AWH-50
