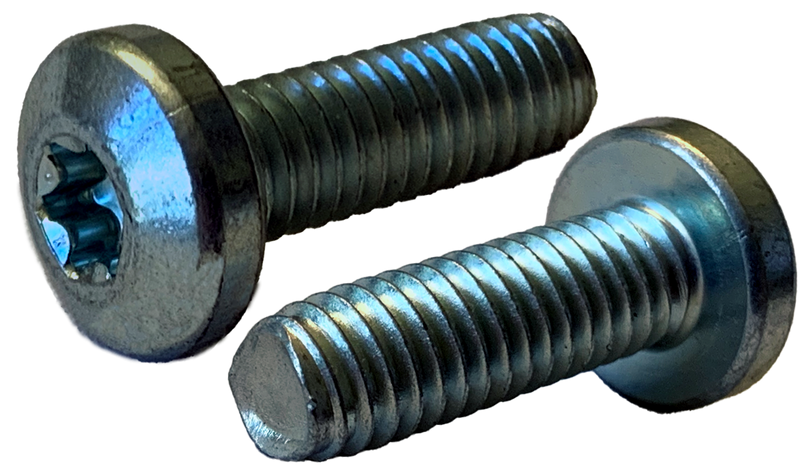

5/16"-18 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / Made in USA
- Steel
- Zinc
- 18 TPI · Coarse
- ASME B18.6.3
$356.40
$1.78 / pc
Package of 200
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16"-18 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / Made in USA
RoHS Compliant🇺🇸 Made in USA
$356.40
$1.78/pc
Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Pan Head
Family: RTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
5/16"-18 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Pan Head / Low Carbon Steel / Zinc / Made in USA
SKU: 3112RTP-200
Technical Specifications
Thread Size
5/16"-18
Thread Series
UNC
Thread Pitch
18 TPI
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
3/4"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
USA
Head Diameter (in)
0.231–0.245
Measurement System
Inch
Head Height (in)
0.203–0.218
SKU
3112RTP-200
