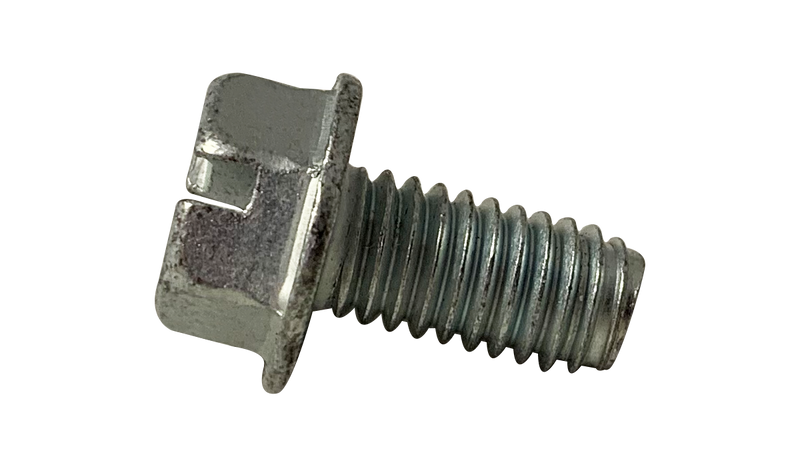

5/16"-18 x 1" Trilobe Thread Forming Screws for Metal / Slotted / Hex Washer Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 18 TPI · Coarse
- ASME B18.6.3
$253.65
$1.69 / pc
Package of 150
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16"-18 x 1" Trilobe Thread Forming Screws for Metal / Slotted / Hex Washer Head / Low Carbon Steel / Zinc
RoHS Compliant
$253.65
$1.69/pc
Trilobe Thread Forming Screws for Metal / Slotted / Hex Washer Head
Family: RSW
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
5/16"-18 x 1" Trilobe Thread Forming Screws for Metal / Slotted / Hex Washer Head / Low Carbon Steel / Zinc
SKU: 3116RSW-150
Technical Specifications
Thread Size
5/16"-18
Thread Series
UNC
Thread Pitch
18 TPI
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
1"
Material
Steel
Finish
Zinc
Drive
Slotted
Head Style
Hex Washer Head
Standard
ASME B18.6.3
Country of Origin
Import
Head Diameter (in)
1/2
Measurement System
Inch
Head Height (in)
0.208–0.230
Width Across Flats
1/2"
SKU
3116RSW-150
