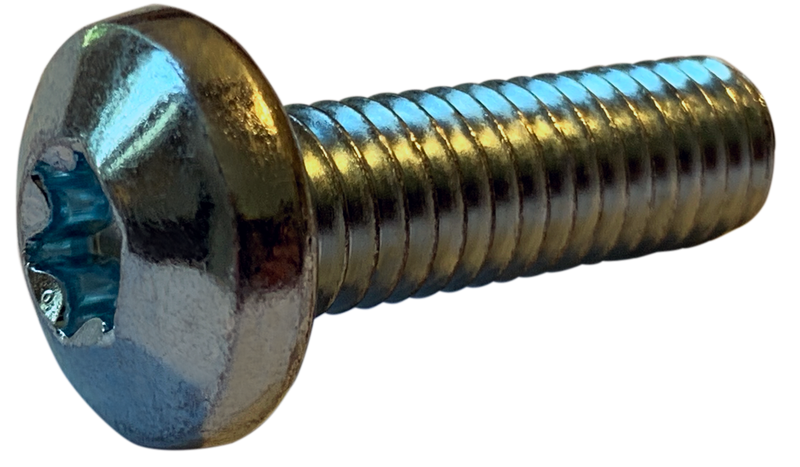

5/16"-18 x 1 3/4" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 18 TPI · Coarse
- ASME B18.6.3
$95.45
$0.955 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16"-18 x 1 3/4" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
RoHS Compliant
$95.45
$0.955/pc
Machine Screws / Six-Lobe (Torx®) / Pan Head
Family: MTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
5/16"-18 x 1 3/4" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
SKU: 3128MTP-100
Technical Specifications
Thread Size
5/16"-18
Thread Series
UNC
Thread Pitch
18 TPI
Thread Coverage
Full Thread
Length
1 3/4"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Machine (Blunt)
Measurement System
Inch
SKU
3128MTP-100
