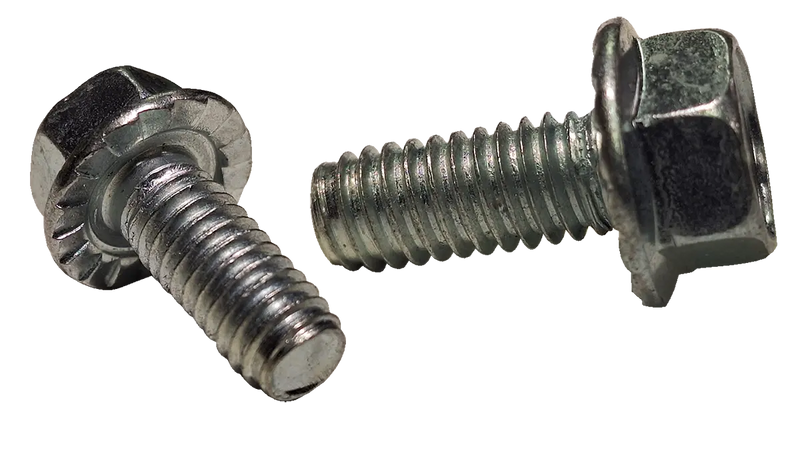

5/16"-18 x 1/2" Trilobe TFS for Metal / Unslotted / Hex Washer Head (Large Flange) / Low Carbon Steel / Zinc / Serrated
- Steel
- Zinc
- 18 TPI · Coarse
- ASME B18.6.3
$216.72
$1.44 / pc
Package of 150
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16"-18 x 1/2" Trilobe TFS for Metal / Unslotted / Hex Washer Head (Large Flange) / Low Carbon Steel / Zinc / Serrated
RoHS Compliant
$216.72
$1.44/pc
Trilobe TFS for Metal / Unslotted
Family: RWW
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
5/16"-18 x 1/2" Trilobe TFS for Metal / Unslotted / Hex Washer Head (Large Flange) / Low Carbon Steel / Zinc / Serrated
SKU: 3108RWW-150
Technical Specifications
Thread Size
5/16"-18
Thread Series
UNC
Thread Pitch
18 TPI
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
1/2"
Material
Steel
Finish
Zinc
Drive
External Hex
Head Style
Hex Washer Serrated
Standard
ASME B18.6.3
Country of Origin
Import
Measurement System
Inch
Width Across Flats
1/2"
SKU
3108RWW-150
