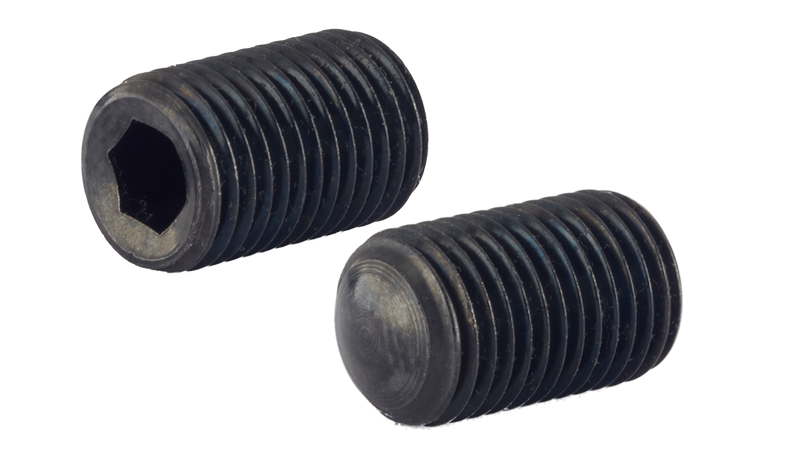

3/8"-24 x 5/8" Oval Point Socket Set Screws / Alloy Steel / Black Oxide
- Steel
- Black Oxide
- 24 TPI · Fine
- ASME B18.3
$522.00
$1.74 / pc
Package of 300
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/8"-24 x 5/8" Oval Point Socket Set Screws / Alloy Steel / Black Oxide
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$522.00
$1.74/pc
Oval Point Socket Set Screws / Alloy Steel / Black Oxide
Family: SSOFI
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/8"-24 x 5/8" Oval Point Socket Set Screws / Alloy Steel / Black Oxide
SKU: 3810SSOI-300
Technical Specifications
Thread Size
3/8"-24
Thread Series
UNF
Thread Pitch
24 TPI
Length
5/8"
Material
Steel
Finish
Black Oxide
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3
Country of Origin
Import
Point Type
Oval
Measurement System
Inch
SKU
3810SSOI-300
