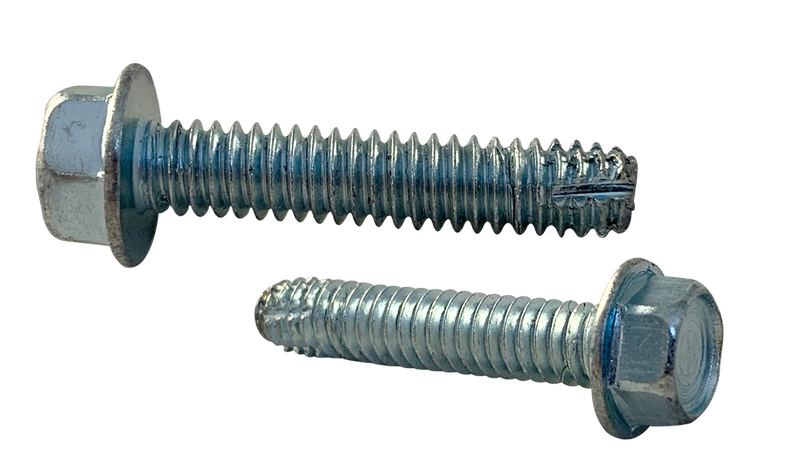

3/8"-16 x 2" Type F Thread Cutting Screws / Unslotted / Hex Washer Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 16 TPI · Coarse
- ASME B18.6.3
$163.61
$3.27 / pc
Package of 50
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/8"-16 x 2" Type F Thread Cutting Screws / Unslotted / Hex Washer Head / Low Carbon Steel / Zinc
RoHS Compliant
$163.61
$3.27/pc
Type F Thread Cutting Screws / Unslotted / Hex Washer Head
Family: FW
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/8"-16 x 2" Type F Thread Cutting Screws / Unslotted / Hex Washer Head / Low Carbon Steel / Zinc
SKU: 3732FW-50
Technical Specifications
Thread Size
3/8"-16
Thread Series
UNC
Thread Pitch
16 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type F
Length
2"
Material
Steel
Finish
Zinc
Drive
External Hex
Head Style
Hex Washer Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
9/16
Measurement System
Inch
Head Height (in)
0.270–0.295
Width Across Flats
9/16"
SKU
3732FW-50
Pilot Hole by Steel Thickness (3/8"-16)
| Steel Thickness (in) | Pilot Hole (in) | Drill Size |
|---|---|---|
| 0.125 | 0.339 | R |
| 0.140 | 0.339 | R |
| 0.187 | 0.348 | S |
| 0.250 | 0.358 | T |
| 0.312 | 0.358 | T |
| 0.375 | 0.358 | T |
| 0.500 | 0.358 | T |
Source: Machinery's Handbook, 26th ed., Table 13 (steel). It may be necessary to vary the hole size to suit a particular application.
