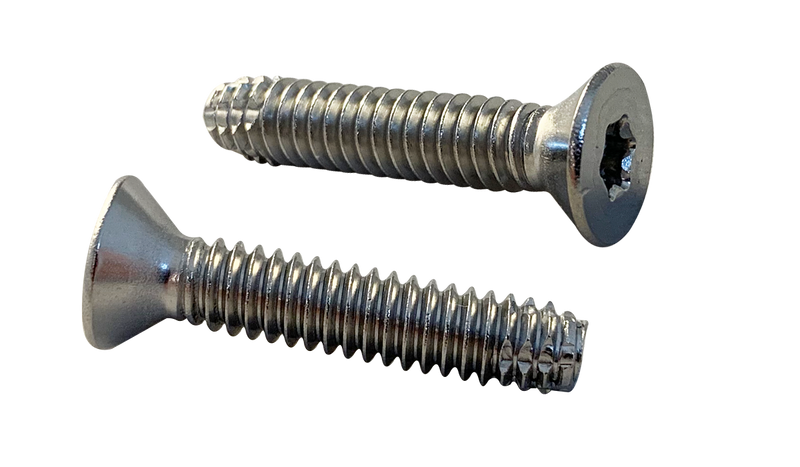

3/8"-16 x 2 1/2" Type F Thread Cutting Screws / 6-Lobe / Flat Head / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- 16 TPI · Coarse
- ASME B18.6.3
$98.90
$9.89 / pc
Package of 10
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/8"-16 x 2 1/2" Type F Thread Cutting Screws / 6-Lobe / Flat Head / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$98.90
$9.89/pc
Type F Thread Cutting Screws / Six-Lobe (Torx®) / Flat Head
Family: FTF188
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/8"-16 x 2 1/2" Type F Thread Cutting Screws / 6-Lobe / Flat Head / 18-8 Stainless Steel / Passivated
SKU: 3740FTF188-10
Technical Specifications
Thread Size
3/8"-16
Thread Series
UNC
Thread Pitch
16 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type F
Length
2 1/2"
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Drive
6-Lobe
Head Style
Flat Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
0.670–0.717
Measurement System
Inch
Head Height (in)
0.230
SKU
3740FTF188-10
