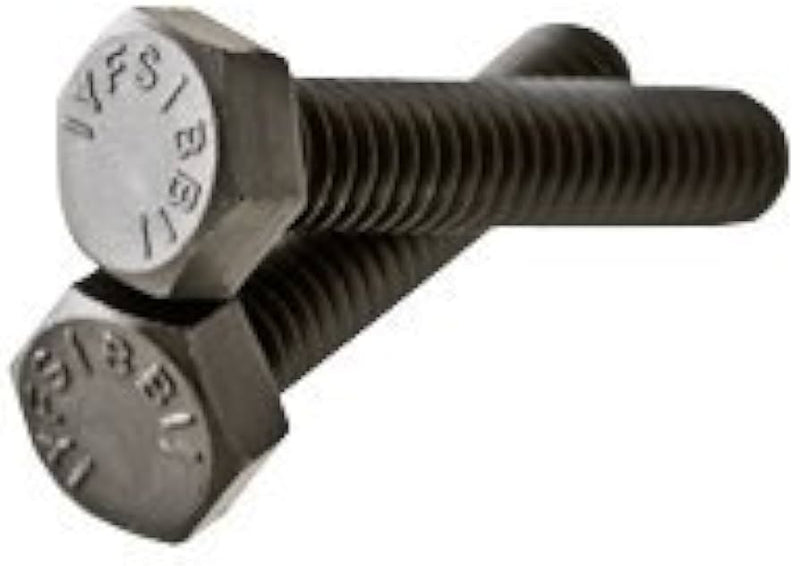

3/8"-16 x 2 1/2" Hex Tap Bolt, Full Thread / 5 Steel / Plain / SAE J429; IFI-199
$225.39
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"-16 x 2 1/2" Hex Tap Bolt, Full Thread / 5 Steel / Plain / SAE J429; IFI-199
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | Grade 5 |
| Size | 3/8"-16 |
| Length | 2 1/2" |
| Head Style | Hex Head |
| Thread Pitch | 16 TPI |
| Thread Class | Coarse |
| Hardness | C25 - C34 |
| Tensile Strength | 120000 |
| Standard | IFI-199 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Hex Tap Bolt, Full Thread / 5 Steel / Plain
Family: 501
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"-16
Material
Steel
Grade
Grade 5
Head Style
Hex Head
Thread Pitch
16 TPI
Tensile Strength
120000
Hardness
C25 - C34
SKU
501138-500
