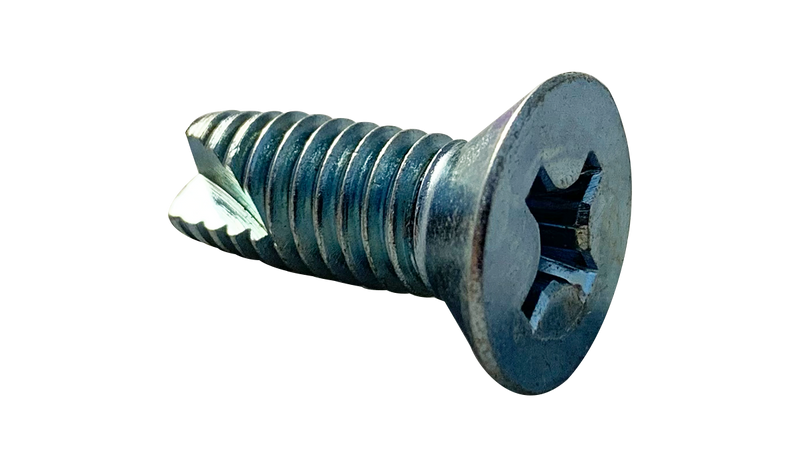

3/8"-16 x 1" Type 23 Thread Cutting Screws / Phillips / Flat Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 16 TPI · Coarse
- ASME B18.6.3
$77.71
$1.30 / pc
Package of 60
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/8"-16 x 1" Type 23 Thread Cutting Screws / Phillips / Flat Head / Low Carbon Steel / Zinc
RoHS Compliant
$77.71
$1.30/pc
Type 23 Thread Cutting Screws / Phillips / Flat Head
Family: 3PF
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/8"-16 x 1" Type 23 Thread Cutting Screws / Phillips / Flat Head / Low Carbon Steel / Zinc
SKU: 37163PF-60
Technical Specifications
Thread Size
3/8"-16
Thread Series
UNC
Thread Pitch
16 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type 23
Length
1"
Material
Steel
Finish
Zinc
Drive
Phillips
Head Style
Flat Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
0.670–0.717
Measurement System
Inch
Head Height (in)
0.200–0.230
SKU
37163PF-60
