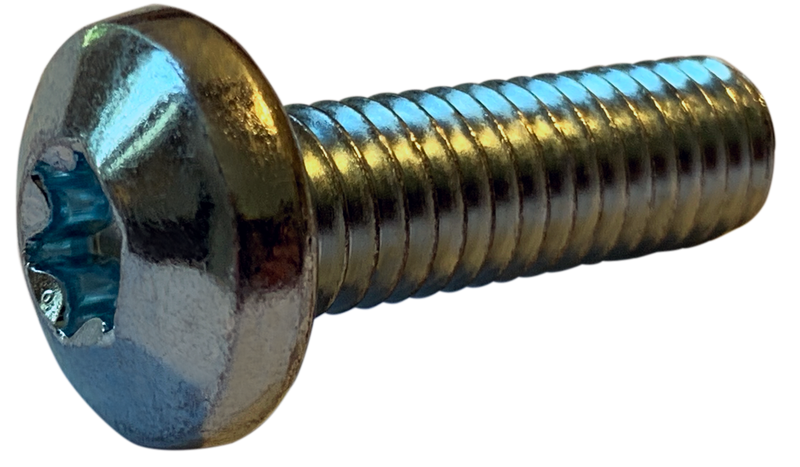

3/8"-16 x 1" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 16 TPI · Coarse
- ASME B18.6.3
$178.65
$2.38 / pc
Package of 75
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/8"-16 x 1" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
RoHS Compliant
$178.65
$2.38/pc
Machine Screws / Six-Lobe (Torx®) / Pan Head
Family: MTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/8"-16 x 1" Machine Screws / 6-Lobe / Pan Head / Low Carbon Steel / Zinc
SKU: 3716MTP-75
Technical Specifications
Thread Size
3/8"-16
Thread Series
UNC
Thread Pitch
16 TPI
Thread Coverage
Full Thread
Length
1"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Machine (Blunt)
Head Diameter (in)
0.716–0.740
Measurement System
Inch
Head Height (in)
0.244–0.261
SKU
3716MTP-75
