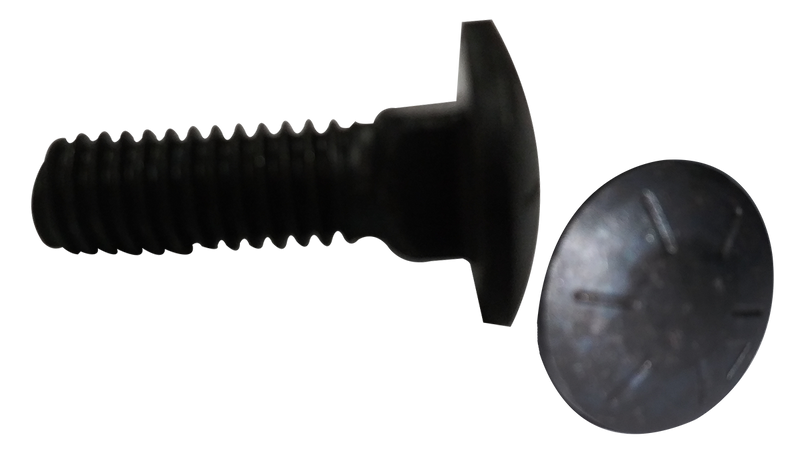

3/4"-10 x 5" Carriage Bolts / Full Thread / Grade 8 / Plain
- Steel
- Grade 8
- Plain
- 10 TPI · Coarse
- ASME B18.5
$78.04
$15.61 / pc
Package of 5
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
3/4"-10 x 5" Carriage Bolts / Full Thread / Grade 8 / Plain
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Why does a carriage bolt have a square neck?
The square neck beneath the round head wedges into the wood as the nut is tightened, preventing the bolt from rotating. This allows tightening from one side only — perfect for deck and fence construction where you can not access the back side of the bolt.
$78.04
$15.61/pc
Carriage Bolts / Full Thread / Grade 8
Family: C8FTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
3/4"-10 x 5" Carriage Bolts / Full Thread / Grade 8 / Plain
SKU: 7580C8P-5
Technical Specifications
Thread Size
3/4"-10
Thread Series
UNC
Thread Pitch
10 TPI
Thread Coverage
Full Thread
Length
5"
Material
Steel
Grade
Grade 8
Finish
Plain
Head Style
Round Head
Standard
ASME B18.5
Country of Origin
Import
Tensile Strength
150 ksi (1034 MPa)
Hardness
C33 - C39
Measurement System
Inch
SKU
7580C8P-5
