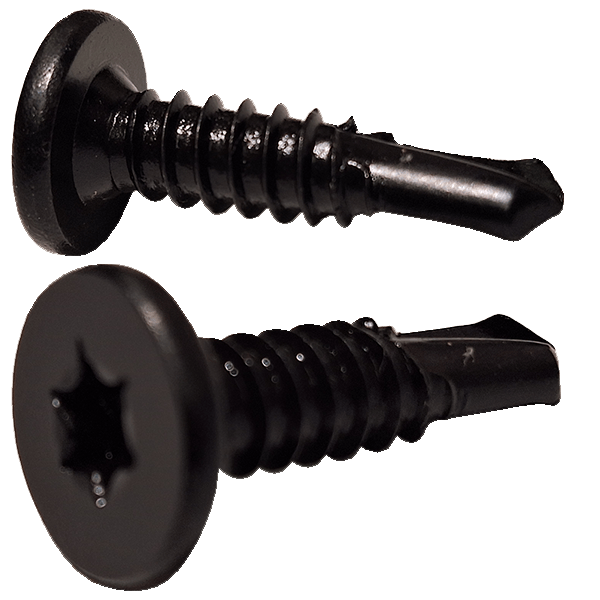

#10 x 1 1/2" Torx Pancake Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Black Oxide
- Steel
- Black Oxide
- 10-16 · Coarse
- ASME B18.6.3
$124.90
$0.625 / pc
Package of 200
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10 x 1 1/2" Torx Pancake Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Black Oxide
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$124.90
$0.625/pc
Self-Drilling Screws / Six-Lobe (Torx®) / Pancake Head
Family: KTCB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10 x 1 1/2" Torx Pancake Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Black Oxide
SKU: 1024KTCB-200
Technical Specifications
Thread Size
#10
Thread Series
UNC
Thread Pitch
10-16
Thread Coverage
Full Thread
Thread Action
Self-Drilling
Length
1 1/2"
Material
Steel
Finish
Black Oxide
Drive
6-Lobe
Head Style
Pancake Head
Standard
ASME B18.6.3
Country of Origin
Import
Head Diameter (in)
0.423–0.447
Measurement System
Inch
Head Height (in)
0.068–0.080
SKU
1024KTCB-200
