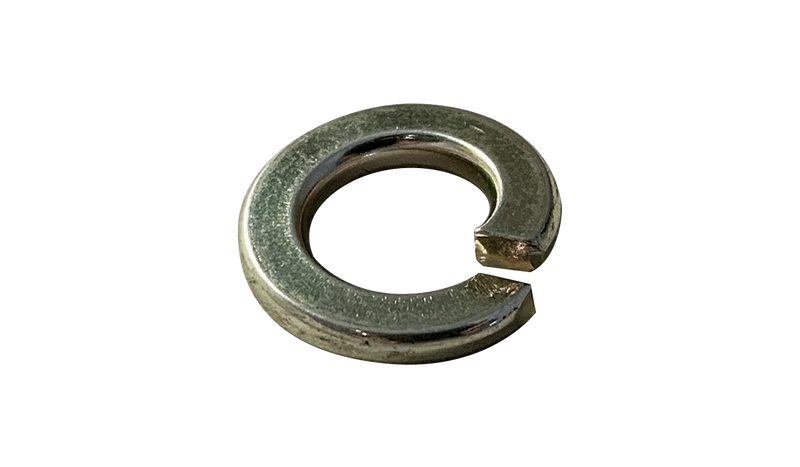

#10 Split Lock Washer / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- ASME B18.21.1
$76.44
$0.153 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10 Split Lock Washer / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
Are lock washers effective at preventing loosening?
Modern engineering testing shows split lock washers can actually reduce clamp load under vibration. For critical applications, use nylon insert lock nuts or thread locker (Loctite). Tooth lock washers (internal/external star) typically perform better than split washers in vibration-prone applications.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Is this product RoHS compliant?
Yes, this product is RoHS Compliant. RoHS (Restriction of Hazardous Substances) restricts the use of lead, mercury, cadmium, hexavalent chromium, and certain flame retardants. RoHS-compliant fasteners use trivalent chromium passivation instead of hexavalent.
$76.44
$0.153/pc
Split Lock Washer 18-8
Family: VW3
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#10
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Thread Direction
Unthreaded
Standard
ASME B18.21.1
Country of Origin
Import
Washer Type
Split
Inside Diameter
0.194"
Outer Diameter
0.337"
Thickness
0.047"
Tensile Strength
70000
Hardness
B70 - C32
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
VW3100-500
