#10-24 x 2" Type F Thread Cutting Screws / Slotted / Hex Washer Head / Low Carbon Steel / Zinc / Serrated
- Steel
- Zinc
- 24 TPI · Coarse
- ASME B18.6.3
$55.75
$0.372 / pc
Package of 150
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description

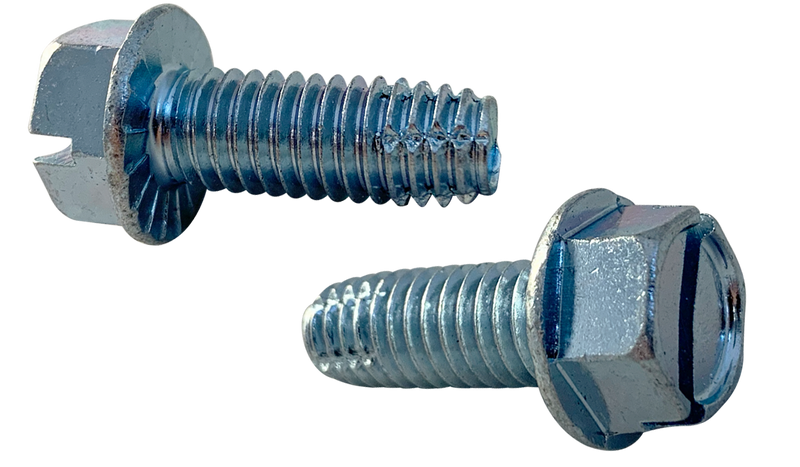

#10-24 x 2" Type F Thread Cutting Screws / Slotted / Hex Washer Head / Low Carbon Steel / Zinc / Serrated
RoHS Compliant
$55.75
$0.372/pc
Type F Thread Cutting Screws / Slotted / Hex Washer Head
Family: FSWS
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-24 x 2" Type F Thread Cutting Screws / Slotted / Hex Washer Head / Low Carbon Steel / Zinc / Serrated
SKU: 1032FSWS-150
Technical Specifications
Thread Size
#10-24
Thread Series
UNC
Thread Pitch
24 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type F
Length
2"
Material
Steel
Finish
Zinc
Drive
Slotted
Head Style
Hex Washer Serrated
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
5/16
Measurement System
Inch
Head Height (in)
0.105–0.120
Width Across Flats
5/16"
SKU
1032FSWS-150
Pilot Hole by Steel Thickness (#10-24)
| Steel Thickness (in) | Pilot Hole (in) | Drill Size |
|---|---|---|
| 0.050 | 0.152 | #24 |
| 0.060 | 0.154 | #23 |
| 0.083 | 0.161 | #20 |
| 0.109 | 0.161 | #20 |
| 0.125 | 0.166 | #19 |
| 0.140 | 0.170 | #18 |
| 0.187 | 0.173 | #17 |
| 0.250 | 0.173 | #17 |
| 0.312 | 0.173 | #17 |
| 0.375 | 0.173 | #17 |
Source: Machinery's Handbook, 26th ed., Table 13 (steel). It may be necessary to vary the hole size to suit a particular application.
