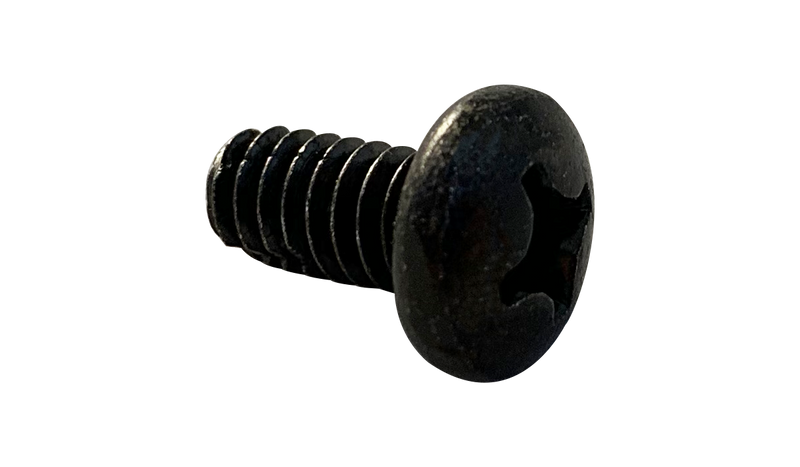

#10-24 x 1" Type F Thread Cutting Screws / Phillips / Pan Head / Low Carbon Steel / Black Oxide
- Steel
- Black Oxide
- 24 TPI · Coarse
- ASME B18.6.3
$244.33
$0.407 / pc
Package of 600
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10-24 x 1" Type F Thread Cutting Screws / Phillips / Pan Head / Low Carbon Steel / Black Oxide
Frequently Asked Questions
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$244.33
$0.407/pc
Type F Thread Cutting Screws / Phillips / Pan Head
Family: FPPB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-24 x 1" Type F Thread Cutting Screws / Phillips / Pan Head / Low Carbon Steel / Black Oxide
SKU: 1016FPPB-600
Technical Specifications
Thread Size
#10-24
Thread Series
UNC
Thread Pitch
24 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type F
Length
1"
Material
Steel
Finish
Black Oxide
Drive
Phillips
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
0.357–0.373
Measurement System
Inch
Head Height (in)
0.122–0.133
SKU
1016FPPB-600
Pilot Hole by Steel Thickness (#10-24)
| Steel Thickness (in) | Pilot Hole (in) | Drill Size |
|---|---|---|
| 0.050 | 0.152 | #24 |
| 0.060 | 0.154 | #23 |
| 0.083 | 0.161 | #20 |
| 0.109 | 0.161 | #20 |
| 0.125 | 0.166 | #19 |
| 0.140 | 0.170 | #18 |
| 0.187 | 0.173 | #17 |
| 0.250 | 0.173 | #17 |
| 0.312 | 0.173 | #17 |
| 0.375 | 0.173 | #17 |
Source: Machinery's Handbook, 26th ed., Table 13 (steel). It may be necessary to vary the hole size to suit a particular application.
