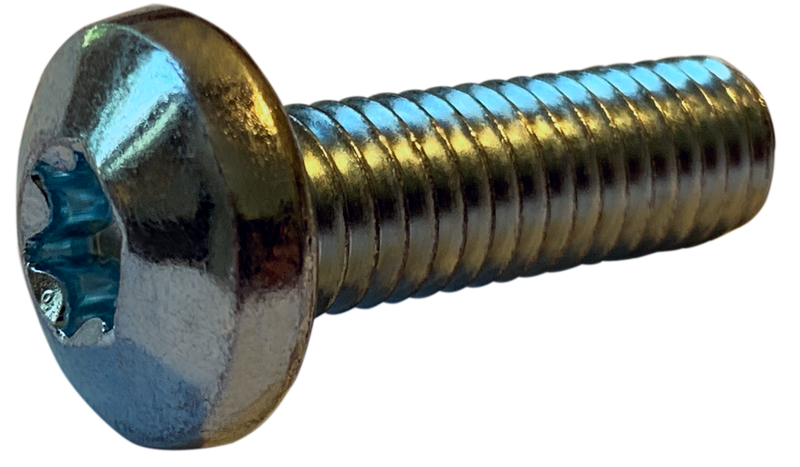

#10-24 x 1" Torx Pan Head Machine Screws, Full Thread / Low Carbon Steel / Zinc
- Steel
- Zinc
- 24 TPI · Coarse
- ASME B18.6.3
$179.70
$0.359 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10-24 x 1" Torx Pan Head Machine Screws, Full Thread / Low Carbon Steel / Zinc
RoHS Compliant
$179.70
$0.359/pc
Machine Screws / Six-Lobe (Torx®) / Pan Head
Family: MTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-24 x 1" Torx Pan Head Machine Screws, Full Thread / Low Carbon Steel / Zinc
SKU: 1016MTP-500
Technical Specifications
Thread Size
#10-24
Thread Series
UNC
Thread Pitch
24 TPI
Thread Coverage
Full Thread
Length
1"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Machine (Blunt)
Head Diameter (in)
0.357–0.373
Measurement System
Inch
Head Height (in)
0.122–0.133
SKU
1016MTP-500
