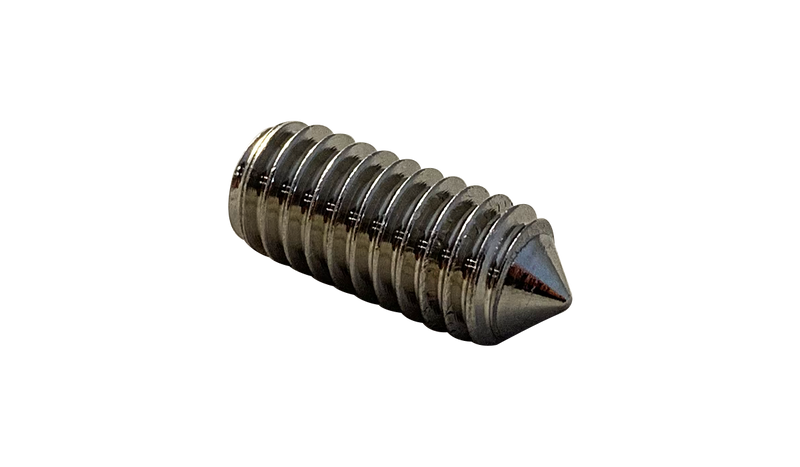

#10-24 x 1/4" Socket Set Screws / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- 24 TPI · Coarse
- ASME B18.3
$113.04
$0.452 / pc
Package of 250
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10-24 x 1/4" Socket Set Screws / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Is this product RoHS compliant?
Yes, this product is RoHS Compliant. RoHS (Restriction of Hazardous Substances) restricts the use of lead, mercury, cadmium, hexavalent chromium, and certain flame retardants. RoHS-compliant fasteners use trivalent chromium passivation instead of hexavalent.
$113.04
$0.452/pc
Cone Point Socket Set Screws
Family: SSNCI188
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-24 x 1/4" Socket Set Screws / 18-8 Stainless Steel / Passivated
SKU: 1004SSNI188-250
Technical Specifications
Thread Size
#10-24
Thread Series
UNC
Thread Pitch
24 TPI
Length
1/4"
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3
Country of Origin
Import
Point Type
Cone
Measurement System
Inch
SKU
1004SSNI188-250
