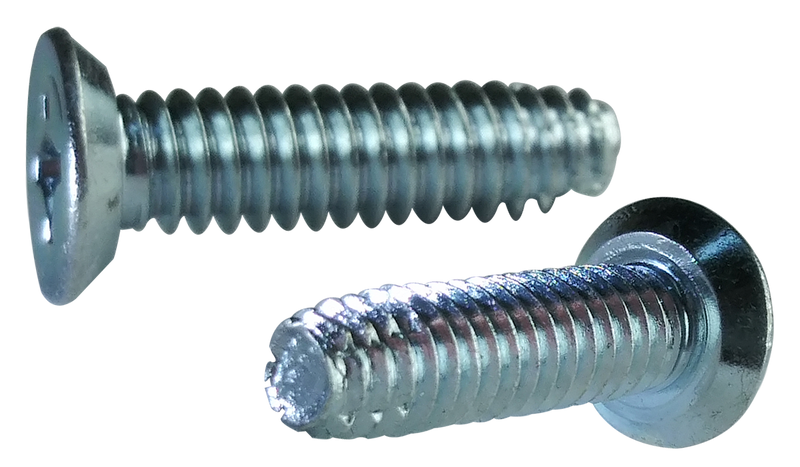

#10-24 x 1 1/2" Type F Thread Cutting Screws / Phillips / Flat Undercut Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 24 TPI · Coarse
- ASME B18.6.3
$139.22
$0.348 / pc
Package of 400
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10-24 x 1 1/2" Type F Thread Cutting Screws / Phillips / Flat Undercut Head / Low Carbon Steel / Zinc
RoHS Compliant
$139.22
$0.348/pc
Type F Thread Cutting Screws / Phillips / Flat Undercut Head
Family: FPU
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-24 x 1 1/2" Type F Thread Cutting Screws / Phillips / Flat Undercut Head / Low Carbon Steel / Zinc
SKU: 1024FPU-400
Technical Specifications
Thread Size
#10-24
Thread Series
UNC
Thread Pitch
24 TPI
Thread Coverage
Full Thread
Thread Action
Thread Cutting
Tapping Type
Type F
Length
1 1/2"
Material
Steel
Finish
Zinc
Drive
Phillips
Head Style
Flat Undercut Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Blunt Tapered
Head Diameter (in)
0.333–0.362
Measurement System
Inch
Head Height (in)
0.068–0.081
SKU
1024FPU-400
Pilot Hole by Steel Thickness (#10-24)
| Steel Thickness (in) | Pilot Hole (in) | Drill Size |
|---|---|---|
| 0.050 | 0.152 | #24 |
| 0.060 | 0.154 | #23 |
| 0.083 | 0.161 | #20 |
| 0.109 | 0.161 | #20 |
| 0.125 | 0.166 | #19 |
| 0.140 | 0.170 | #18 |
| 0.187 | 0.173 | #17 |
| 0.250 | 0.173 | #17 |
| 0.312 | 0.173 | #17 |
| 0.375 | 0.173 | #17 |
Source: Machinery's Handbook, 26th ed., Table 13 (steel). It may be necessary to vary the hole size to suit a particular application.
