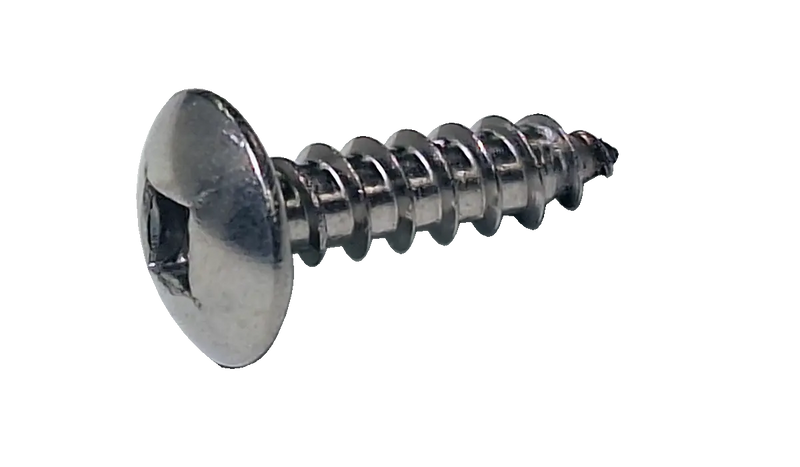

#10-12 x 1 1/4" Type A Self-Tapping Screws / Square / Truss Head / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- 12 TPI · Coarse
- ASME B18.6.3
$224.01
$0.448 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#10-12 x 1 1/4" Type A Self-Tapping Screws / Square / Truss Head / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$224.01
$0.448/pc
Truss Head Self-Tapping Screw, Type A, Full Thread (Square) / 18-8 Stainless Steel / Passivated
Family: W61
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#10-12 x 1 1/4" Type A Self-Tapping Screws / Square / Truss Head / 18-8 Stainless Steel / Passivated
SKU: W61144-500
Technical Specifications
Thread Size
#10-12
Thread Series
Sheet Metal
Thread Pitch
12 TPI
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Type A
Length
1 1/4"
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Drive
Square
Head Style
Truss Head
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Gimlet
Tensile Strength
70000
Hardness
B70 - C32
Measurement System
Inch
SKU
W61144-500
