1"-8 x 11" Hex Cap Screws / Alloy Steel / Grade 8 / Zinc Yellow CR+6
- Steel
- Grade 8
- Zinc Yellow
- 8 TPI · Coarse
- ASME B18.2.1
$528.81
$35.25 / pc
Bulk Box of 15
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description

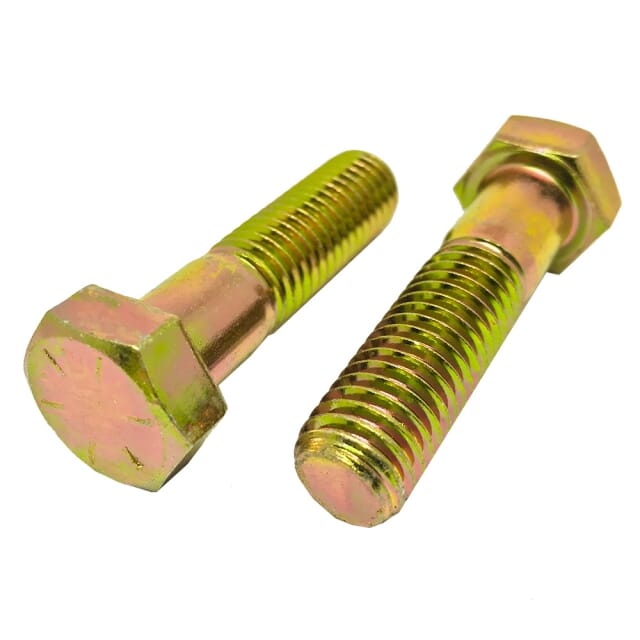

1"-8 x 11" Hex Cap Screws / Alloy Steel / Grade 8 / Zinc Yellow CR+6
1"-8 x 11" hex cap screw in Medium Carbon Alloy Steel, Grade 8, zinc yellow finish. For machinery, structural and general assembly wherever a wrench can reach.
- HEX HEAD — driven with a socket or wrench, so you can put real torque through it without a bit camming out
- HEX DRIVE — wrench or socket driven — the highest practical torque and no bit to cam out
- YELLOW ZINC — zinc plating with a yellow chromate conversion coat, slightly better protected than clear zinc; interior and sheltered use
- SAE GRADE 8 — medium carbon alloy, quenched and tempered — 150,000 PSI tensile; six radial lines on the head, for suspension, towing and high-clamp joints
- ALLOY STEEL — quenched and tempered for high tensile strength; nearly always supplied with a protective finish since the base metal rusts readily
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
$528.81
$35.25/pc
Hex Cap Screw, Partial Thread / Grade 8 Steel / Zinc Bake
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1"-8 x 11" Hex Cap Screws / Alloy Steel / Grade 8 / Zinc Yellow CR+6
SKU: 455720-15
Technical Specifications
Thread Size
1"-8
Thread Series
UNC
Thread Pitch
8 TPI
Length
11"
Material
Steel
Grade
Grade 8
Finish
Zinc Yellow
Drive
External Hex
Head Style
Hex Head
Standard
ASME B18.2.1
Country of Origin
Import
Tensile Strength
150000
Hardness
C33 - C39
Measurement System
Inch
Head Height
43/64"
Width Across Flats
1 1/2"
SKU
455720-15
