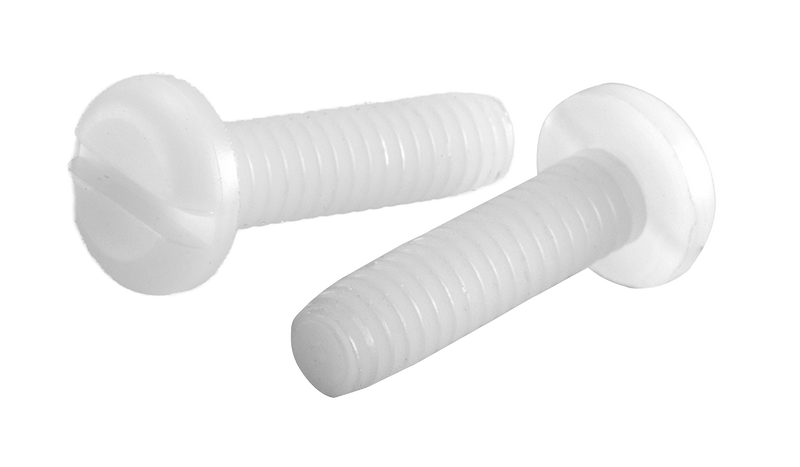

1/4"-20 x 5/8" Machine Screws / Slotted / Pan Head / Nylon / Natural (White) / Made in USA
- Nylon
- Natural
- 20 TPI · Coarse
- ASME B18.6.3
$75.97
$0.304 / pc
Package of 250
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-20 x 5/8" Machine Screws / Slotted / Pan Head / Nylon / Natural (White) / Made in USA
1/4"-20 x 5/8" machine screw in Nylon. For threading into a tapped hole or a nut in assemblies and enclosures.
- PAN HEAD — a rounded head with a wide bearing face — the general-purpose choice where flush seating is not required
- SLOTTED DRIVE — a straight slot for hand driving, restoration and period work
- NATURAL — supplied uncoated in its base material
- FULL THREAD — threaded to the head, so it grips over the whole length and suits thin or variable stack-ups
- NYLON — non-conductive, non-magnetic and chemically inert; for electrical isolation and light-duty assembly where metal would corrode or short
🇺🇸 Made in USA
$75.97
$0.304/pc
Machine Screws / Slotted / Pan Head
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1/4"-20 x 5/8" Machine Screws / Slotted / Pan Head / Nylon / Natural (White) / Made in USA
SKU: 1410MSPN-250
Technical Specifications
Thread Size
1/4"-20
Thread Series
UNC
Thread Pitch
20 TPI
Thread Coverage
Full Thread
Length
5/8"
Material
Nylon
Finish
Natural
Drive
Slotted
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
USA
Point Type
Machine (Blunt)
Head Diameter (in)
0.473–0.492
Measurement System
Inch
Head Height (in)
0.130–0.144
SKU
1410MSPN-250
