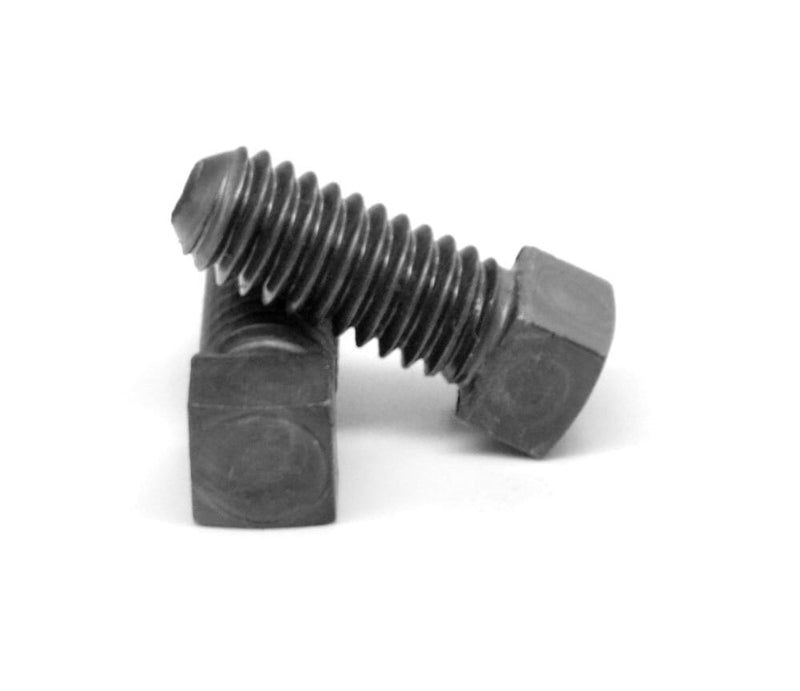

1/4"-20 x 5/8" Cone Point Square Head Set Screws / Case Hardened Steel / Plain / ASTM F912; ASME B18.3
$283.75
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4"-20 x 5/8" Cone Point Square Head Set Screws / Case Hardened Steel / Plain / ASTM F912; ASME B18.3
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Size | 1/4"-20 |
| Length | 5/8" |
| Head Style | Square Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 20 TPI |
| Thread Class | Coarse |
| Point Type | Cone |
| Hardness | C45 - C53 |
| Standard | ASME B18.3 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Cone Point Square Head Set Screw / Case Hardened Steel / Plain
Family: 414
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Square Head
Thread Pitch
20 TPI
Hardness
C45 - C53
SKU
414007-100
