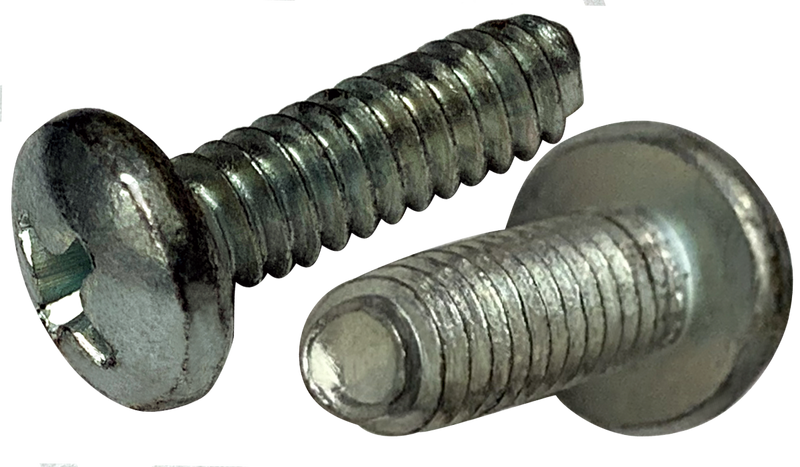

1/4"-20 x 5/16" Trilobe Thread Forming Screws for Metal / Phillips / Pan Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 20 TPI · Coarse
- ASME B18.6.3
$209.52
$0.524 / pc
Package of 400
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-20 x 5/16" Trilobe Thread Forming Screws for Metal / Phillips / Pan Head / Low Carbon Steel / Zinc
RoHS Compliant
$209.52
$0.524/pc
Trilobe Thread Forming Screws for Metal / Phillips / Pan Head
Family: RPP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1/4"-20 x 5/16" Trilobe Thread Forming Screws for Metal / Phillips / Pan Head / Low Carbon Steel / Zinc
SKU: 1405RPP-400
Technical Specifications
Thread Size
1/4"-20
Thread Series
UNC
Thread Pitch
20 TPI
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
5/16"
Material
Steel
Finish
Zinc
Drive
Phillips
Head Style
Pan Head
Standard
ASME B18.6.3
Country of Origin
Import
Head Diameter (in)
0.473–0.492
Measurement System
Inch
Head Height (in)
0.162–0.175
SKU
1405RPP-400
