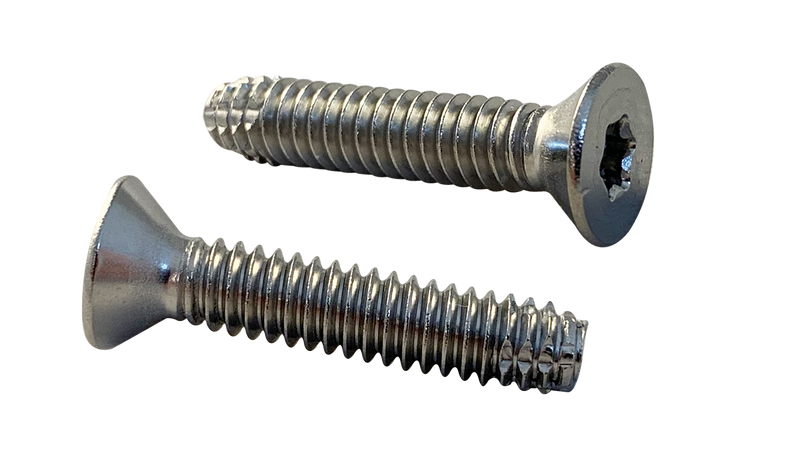

1/4"-20 x 3" Type F Thread Cutting Screws / Torx/Six-Lobe / Flat Head / 18-8 Stainless Steel
$560.62
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4"-20 x 3" Type F Thread Cutting Screws / Torx/Six-Lobe / Flat Head / 18-8 Stainless Steel
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | 1/4"-20 |
| Length | 3" |
| Head Style | Flat Head |
| Drive | 6-Lobe |
| Thread Pitch | 20 TPI |
| Thread Class | Coarse |
| Point Type | Type F |
| Head Diameter | 0.442 - 0.477 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Type F Thread Cutting Screws / Six-Lobe (Torx®) / Flat Head
Family: FTF188
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Thread Type
Coarse (UNC)
Material
Stainless Steel
Grade
18-8
Head Style
Flat Head
Thread Pitch
20 TPI
Head Diameter
0.442 - 0.477
SKU
1448FTF188-400
